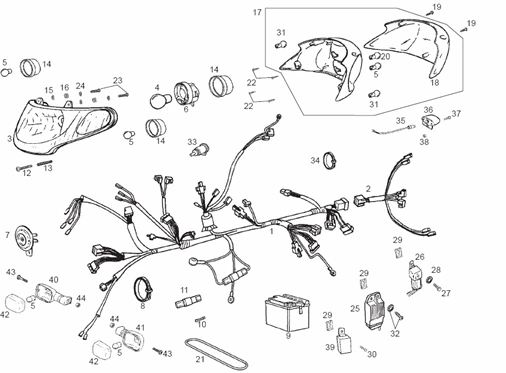

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 E2 2003 (EMEA NAFTA)

	P2R reference	194009
	Maker reference	00G01043301

00G01043301 - ENSEMB.INSTALLATION ELECTRIQUE

	P2R reference	194010
	Maker reference	00G01040301

00G01040301 - ENSEMB.INSTALLATION ELECTRIQUE

	P2R reference	64137
	Maker reference	00G05703051

00G05703051 - FAISCEAU PHARE TEMOIN

	P2R reference	63970
	Maker reference	00G01018011

HEADLAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01018011-

	P2R reference	193951
	Maker reference	00G01024011

00G01024011 - ENSEMBLE PHARE AVANT

	P2R reference	67298
	Maker reference	584332

LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332-

	P2R reference	72331
	Maker reference	AP8224609

BULB HOLDER - FOR HEADLAMP "PIAGGIO GENUINE PART" APRILIA 50-125 MX 2004>, 50 MOJITO -AP8224609-

	P2R reference	63903
	Maker reference	00F01001311

00F01001311 - ZLAXON COMPLET

	P2R reference	63869
	Maker reference	00D00900531

RISLAN CLAMP "PIAGGIO GENUINE PART" APRILIA RS 50 2006>2010, RX-SX 50 2006>2017/GILERA SMT 50 1998>2017 -00D00900531-

	P2R reference	190628
	Maker reference	00G03300401

00G03300401 - BATTERIE.12V. 3AH.

	P2R reference	65970
	Maker reference	234390

234390 - BATTERIE 12V/4 AH YUASA YB4L-B

	P2R reference	63956
	Maker reference	00G01000911

00G01000911 - FUSIBLE 4 AH.

	P2R reference	64030
	Maker reference	00G02300811

00G02300811 - PORTE-FUSIBLE

	P2R reference	63691
	Maker reference	000120440005

00012044000 - VIS

	P2R reference	64031
	Maker reference	00G02302501

00G02302501 - R-RESSORT REGLAGE PHARE AVANT

	P2R reference	64134
	Maker reference	00G05701141

00G05701141 - R-PROTECTEUR PORTE-LAMPE PHARE

	P2R reference	63881
	Maker reference	00D01500021

RUBBER SPACER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00D01500021-

	P2R reference	63963
	Maker reference	00G01008321

TAILLIGHT- "PIAGGIO GENUINE PART" 50 DIESIS -00G01008321-

	P2R reference	63962
	Maker reference	00G01004341

LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01004341-

	P2R reference	65799
	Maker reference	181747

181747 - AMPOULE 12V 5W

	P2R reference	64016
	Maker reference	00G01802361

00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	63677
	Maker reference	000110318015

00011031801 - VIS TARAUD 3,6X18 NOIR CL89H

	P2R reference	67191
	Maker reference	58096R

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 ZIP 2009>, TYPHOON 2006>, FLY 2005>, LIBERTY 2006>, NRG POWER 2005>VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>, RUNNER 2005> -58096R

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	63570
	Maker reference	000000046125

00000004612 - VIS A TETE ALLEN 6M100X12.

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	67298
	Maker reference	584332

LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332-

	P2R reference	187338
	Maker reference	00D05900091

00D05900091 - VIS

	P2R reference	187337
	Maker reference	00G05700641

00G05700641 - CONNECTEUR ALIMENTATION TELEPH

	P2R reference	63899
	Maker reference	00F00900531

00F00900531 - COLLIER

	P2R reference	64029
	Maker reference	00G02300581

00G02300581 - FEU REGISTRE

	P2R reference	64135
	Maker reference	00G05701471

00G05701471 - TUBE PHARES

	P2R reference	63653
	Maker reference	000042516005

00004251600 - VIS TETE CREUSE 5M100X16

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	64136
	Maker reference	00G05701651

RELAY "PIAGGIO GENUINE PART" GILERA 50 SMT 1998>2003 -00G05701651-

	P2R reference	193952
	Maker reference	00G01704021

00G01704021 - CLIGNOTEURS AR. DROITE

	P2R reference	193953
	Maker reference	00G01704311

00G01704311 - CLIGNOTEURS AR. GAUCHE

	P2R reference	193954
	Maker reference	00G01704071

00G01704071 - R-VERRE CLIGNOTANT

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-
