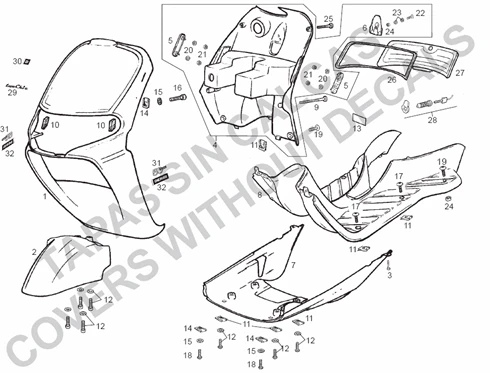

Châssis - parties plastiques - carrosseries : 9 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1134/Atlantis_50_Two_Chic_3ª_ed_E2_2005_(EMEA_NAFTA)_9.png)
1 |
20G01502351 - TABLIER AV. More informationQuantity required : 1 |
||||||
|
1 |
00G015133595 - TABLIER AV. More informationQuantity required : 1 |
||||||
|
2 |
20G00703021 - GUARD.DT.INF.ATLANTIS P/P More informationQuantity required : 1 |
||||||
|
2 |
00G00714028 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/2/img/63682.jpg)
3 |
00011051601 - VIS TARAUD 5,1X16 NOIR CL89H More informationQuantity required : 1 |
||||||
|
4 |
00G06805433 - INTER.ECU FR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
5 |
AP8124719 - CATADIOPTRE, AMBRE More informationQuantity required : 1 |
||||||
|
6 |
00G06301102 - CROCHET More informationQuantity required : 1 |
||||||
|
7 |
00G05902862 - PROTECTION INF.CHASSIS More informationQuantity required : 1 |
||||||
|
8 |
00G01504092 - REPOSE-PIED More informationQuantity required : 1 |
||||||
|
9 |
00011055001 - VIS TARAUD 5X50 NOIR CL89H More informationQuantity required : 1 |
||||||
|
10 |
00G05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
12 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021 More informationQuantity required : 1 |
||||||
|
13 |
00G04900031 - ADHESIF More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
14 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
15 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
|
16 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
|
17 |
00G01504701 - BOULON SER. More informationQuantity required : 1 |
||||||
|
18 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
20 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
21 |
00000023040 - ECROU INDESSERABLE4M70 More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
24 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
25 |
00011051801 - VIS TARAUD More informationQuantity required : 1 |
||||||
|
26 |
00G05902621 - JOINT COUVERCLE COFFRE More informationQuantity required : 1 |
||||||
|
27 |
00G05902915 - COUVRE COFFRE GRIS More informationQuantity required : 1 |
||||||
|
27 |
00G05902914 - COUVRE COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
28 |
LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681 More informationQuantity required : 1 |
||||||
|
29 |
00G01531732 - ADHESIF TWO CHIC More informationQuantity required : 1 |
||||||
|
29 |
00G01531731 - ADHESIF TWO CHIC More informationQuantity required : 1 |
||||||
|
30 |
00H01536321 - DECAL DE PLAQUE PHARE More informationQuantity required : 1 |
||||||
|
31 |
00G04411822 - ADHESIF More informationQuantity required : 1 |
||||||
|
31 |
00G04411821 - ADHESIF More informationQuantity required : 1 |
||||||
|
32 |
00H00612521 - ADHESIF DERBI More informationQuantity required : 1 |
All the exploded views of this vehicle
-
