Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 1999-2001 EXPORT
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

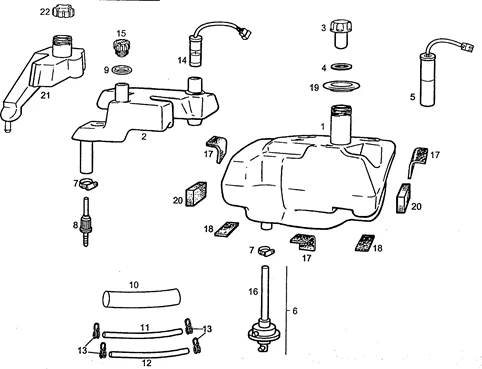

Chassis : 3 RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1128/ATLANTIS_LC_1999-2001_EXPORT_3.png)
1 |
00G00412011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
1 |
00G00413011 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
00G03702081 - RESERVOIR HUILE More informationQuantity required : 1 |
||||||
|
3 |
00F00400131 - ENS.BOUCHON RESERV.ESSENCE V.B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/7/img/63897.jpg)
4 |
FUEL CAP WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00F00400771- More informationQuantity required : 1 |
||||||
|
5 |
00G04305181 - ENSEMBLE FLOTTEUR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/3/0/img/63930.jpg)
6 |
FUEL TAP "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 SX, RX 2006>, RS4 2011> -00G00400181- More informationQuantity required : 1 |
||||||
|
7 |
00008204500 - COLLIER COBRA 21/8 W4 More informationQuantity required : 1 |
||||||
|
8 |
00G03700411 - ENSEMBLE FILTRE A HUILE More informationQuantity required : 1 |
||||||
|
9 |
00G06800641 - BUTEE RESERVOIR HUILE More informationQuantity required : 1 |
||||||
|
10 |
00G03700351 - MANCHON RACCORD TUYEAU D'HUILE More informationQuantity required : 1 |
||||||
|
11 |
00F03740111 - TUY.SORT.RESERV.HUILE SCO/91 E More informationQuantity required : 1 |
||||||
|
12 |
00G06202061 - TUYAU DE PRESSION ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/4/1/img/64241.jpg)
13 |
00H00400501 - CRAMPON ELASTIQUE TUBE ESSENCE More informationQuantity required : 1 |
||||||
|
14 |
00G03703051 - ENSEMBLE JAUGE D'HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/1/9/img/63919.jpg)
15 |
OIL TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00F03710241 More informationQuantity required : 1 |
||||||
|
16 |
00H00400371 - TUYAU RESERVOIR ESSENCE A ROBI More informationQuantity required : 1 |
||||||
|
17 |
00G06200081 - BUTEE INF. RESERVOIR More informationQuantity required : 1 |
||||||
|
18 |
00G00401581 - BUT.INF.AVANT GAUCHE RESERV. More informationQuantity required : 1 |
||||||
|
19 |
00G06200051 - JOINT More informationQuantity required : 1 |
||||||
|
20 |
00G06301771 - BUTEE RESERVOIR More informationQuantity required : 1 |
||||||
|
21 |
00G03802501 - VASE D'EXPANSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/5/7/img/64857.jpg)
22 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2005 -00H03802471- More informationQuantity required : 1 |
