Vehicle Exploded View - DERBI ATLANTIS 50 ATLANTIS LC 1999-2001 EXPORT
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

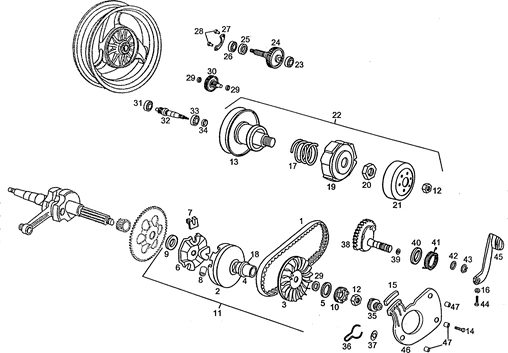

Moteur : 14 VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1128/ATLANTIS_LC_1999-2001_EXPORT_14.png)
1 |
00G02605371 - COURROIE VARIATEUR More informationQuantity required : 1 |
||||||
|
2 |
00G02605461 - SOUS-ENS.CLOCHE GLISSEMENT MAS More informationQuantity required : 1 |
||||||
|
3 |
00G02605381C - KIT - POULIE MENANTE More informationQuantity required : 1 |
||||||
|
4 |
00G03603651 - DOUILE More informationQuantity required : 1 |
||||||
|
5 |
00G01302191 - RONDELLE More informationQuantity required : 1 |
||||||
|
5 |
00G02902091 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
00G02604831 - PLAQUE GLISSEMENT MASSES More informationQuantity required : 1 |
||||||
|
7 |
AP2MEA000421 - COULISSANT More informationQuantity required : 1 |
||||||
|
8 |
00G03614111 - SOUS-ENS.ROULLEAU MASSES CENT. More informationQuantity required : 1 |
||||||
|
9 |
00G03901021 - ROND. BUTOIR COURON. DEMARREUR More informationQuantity required : 1 |
||||||
|
10 |
00G02900271 - CUVETTE DEMARRAGE More informationQuantity required : 1 |
||||||
|
11 |
00G03613611 - ENSEMBLE VARIETEUR ANTERIEUR More informationQuantity required : 1 |
||||||
|
11 |
00G03611611 - ENSEMBLE VARIATEUR ANTERIEUR More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
00G03607561 - VARIETEUR POSTERIEUR More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
00G06401121 - FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/0/img/63790.jpg)
16 |
00442060002 - RONDELLE A RESSORT D6 More informationQuantity required : 1 |
||||||
|
17 |
00G02604211 - RESSORT VARIATEUR POSTERIEUR More informationQuantity required : 1 |
||||||
|
18 |
00G03606191 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
00G03608191 - RONDELLE More informationQuantity required : 1 |
||||||
|
19 |
00G02606821 - ENS.PLAQUE MACHOIRE EMBRAY. More informationQuantity required : 1 |
||||||
|
20 |
00G02602401 - ECROU VILEBREQUIN DROIT More informationQuantity required : 1 |
||||||
|
21 |
00G03604081 - SOUS-ENSEMBLE CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
22 |
00G03607561 - VARIETEUR POSTERIEUR More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
00G04005641 - SOUS-ENS.AXE ROUE REDUCTEUR More informationQuantity required : 1 |
||||||
|
25 |
00G02401381 - JOINT D'ARBRE ROUE ARRIE. More informationQuantity required : 1 |
||||||
|
26 |
00058020401 - COUSSINET 6204 20X47X14 2RSR More informationQuantity required : 1 |
||||||
|
27 |
00G02801901 - PLOMB.COUSSINET AXE POULIE RED More informationQuantity required : 1 |
||||||
|
28 |
|
||||||
|
29 |
00006128280 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
00G04003281 - SOUS-E.AXE INTERM.REDUCTEUR More informationQuantity required : 1 |
||||||
|
31 |
00057020100 - COUSSINET 6201.C3.12X32X10 C3 More informationQuantity required : 1 |
||||||
|
32 |
00G02802291 - SOUS-ENSEMBLE AXE POULIES More informationQuantity required : 1 |
||||||
|
33 |
00057020400 - COUSSINET 6204C3 20X47X14 More informationQuantity required : 1 |
||||||
|
34 |
00G02802471 - JOINT D'ARBRE POULIES More informationQuantity required : 1 |
||||||
|
35 |
00G02900651 - SOUS-ENS.PIGNON DEPLAC.DEMAR.V More informationQuantity required : 1 |
||||||
|
36 |
00G02901281 - RESSORT RETENTION DEMAR. More informationQuantity required : 1 |
||||||
|
37 |
00F02900051 - RONDELLE D'ARRET RESSORT DEMAR More informationQuantity required : 1 |
||||||
|
38 |
00G02903011 - SOUS-ENS. AXE DEMARRAGE More informationQuantity required : 1 |
||||||
|
39 |
00F02900711 - JOINT TORIQUE AXE DEMARREUR UR More informationQuantity required : 1 |
||||||
|
40 |
00G02900051 - DOUILLE BUTEE SECT.DEMARRAGE V More informationQuantity required : 1 |
||||||
|
41 |
00G02900041 - RESSORT DEMARRAGE More informationQuantity required : 1 |
||||||
|
42 |
00G02900661 - RONDELLE REGLAGE AXE DEMAR. VM More informationQuantity required : 1 |
||||||
|
43 |
|
||||||
|
44 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
|
45 |
00G02902073 - R-ENS. LEVIER DE DEMARRAGE HU More informationQuantity required : 1 |
||||||
|
46 |
00G02900171 - ENS.PLAQUE PROT.DEMARRAGE More informationQuantity required : 1 |
||||||
|
47 |
00H06300281 - DOUILLE DE SERRAGE PROT.INTERR More informationQuantity required : 1 |
