Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

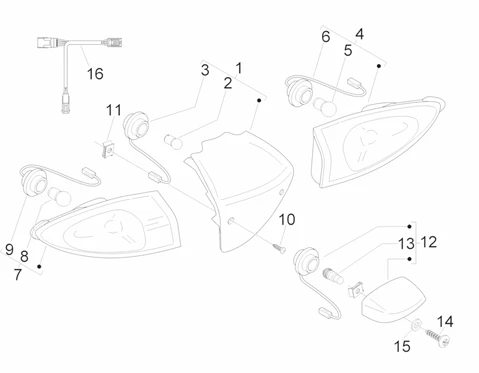

Circuit électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1135/Boulevard_100_4T_2010-2011_(EMEA)_06.04.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/1/0/img/67910.jpg)
1 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50-125 FLY 2006> -641161- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/7/img/67897.jpg)
2 |
LIGHT BULB 12V 25,5 ROUGE "PIAGGIO GENUINE PART" 50-125 FLY, 125-250 CARNABY, PORTER -640753 More informationQuantity required : 1 |
||||||
3 |
641164 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/1/1/img/67911.jpg)
4 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 -641162- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/9/img/67809.jpg)
6 |
BULB HOLDER - FOR FLASHER "PIAGGIO GENUINE PART" 50-125 FLY -638784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/1/2/img/67912.jpg)
7 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 50-125 FLY 2008>2011 -641163- More informationQuantity required : 1 |
||||||
|
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332- More informationQuantity required : 1 |
||||||
|
9 |
BULB HOLDER - FOR FLASHER "PIAGGIO GENUINE PART" 50-125 FLY -638784- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/5/img/65395.jpg)
10 |
015784 - VIS S01578400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/0/9/img/146209.jpg)
12 |
REGISTRATION PLATE LIGHT PIAGGIO 125 FLY, LIBERTY, 125-250-300-350-400-500 BEVERLY/GILERA 125-250-300-500 NEXUS -58235R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
14 |
267115 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
15 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
16 |
639052 - FAISCEAU CABLES More informationQuantity required : 1 |
