Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

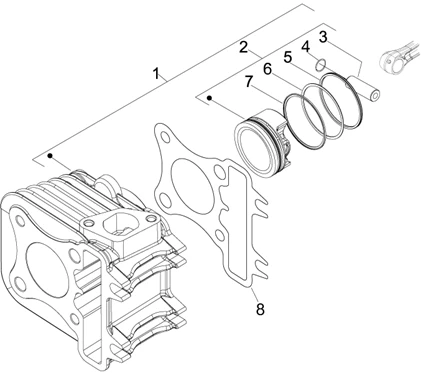

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1135/Boulevard_100_4T_2010-2011_(EMEA)_01.07.png)
1 |
849055 - EN.CYL.PIST. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/1/img/69591.jpg)
2 |
849056 - GROUPE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/5/img/70935.jpg)
3 |
969214 - EJE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/4/img/70934.jpg)
4 |
969213 - EJE SEGMENTO More informationQuantity required : 2 |
||||||
|
5 |
834714 - SEGMENT More informationQuantity required : 1 |
||||||
|
6 |
834712 - SEGMENT More informationQuantity required : 1 |
||||||
|
7 |
834713 - SEGMENT More informationQuantity required : 1 |
||||||
|
8 |
969722 - JUNTA 0,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/8/6/img/70986.jpg)
8 |
969714 - JUNTA 0,4 More informationQuantity required : 1 |
