Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 4T E2 25kmh 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

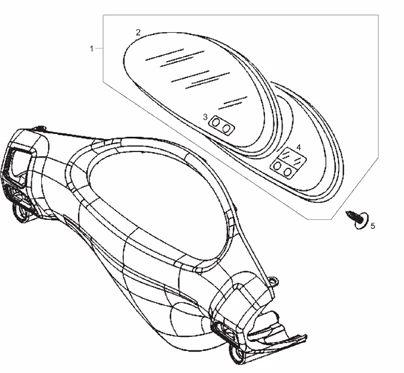

Châssis - parties plastiques - carrosseries : 27 COMPTEUR KILOMÉTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1142/Boulevard_50_4T_E2_25kmh_2009_(EMEA)_27.png)
Search
1 |
641160 - GROUPE INSTR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/8/4/img/66784.jpg)
2 |
DASHBOARD GLASS "PIAGGIO GENUINE PART" 50-125 FLY 2006>2011 -494518 More informationQuantity required : 1 |
||||||
|
3 |
494519 - POUSSOIR More informationQuantity required : 1 |
||||||
|
4 |
494521 - HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 1 |
