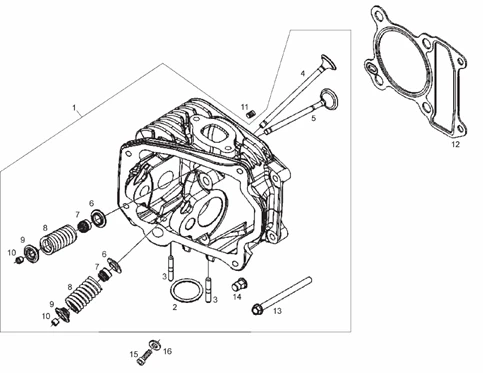

Moteur : 31 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1142/Boulevard_50_4T_E2_25kmh_2009_(EMEA)_31.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/8/5/img/69385.jpg)
1 |
CYLINDER HEAD "PIAGGIO GENUINE PART" PIAGGIO 50 FLY, LIBERTY, VESPA LX, PRIMAVERA, VESPA-S, SPRINT/APRILIA 50 SCARABEO, SPORT-CITY (2 VALVES) -8461974 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/4/img/70944.jpg)
2 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, ZIP 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE, PRIMAVERA 4 STROKE, VESPA-S 4 STROKE -969236 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/1/img/65411.jpg)
3 |
016060 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/5/img/70945.jpg)
4 |
INLET VALVE "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, VESPA LX 4 STROKE, VESPA SPRINT 4 STROKE -969238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/6/img/70946.jpg)
5 |
EXHAUST VALVE "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, VESPA LX 4 STROKE, VESPA SPRINT 4 STROKE -969239- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/2/img/66222.jpg)
6 |
289420 - COUPELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
7 |
VALVE GASKET RING "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -436438 More informationQuantity required : 1 |
||||||
8 |
845782 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/2/img/70952.jpg)
9 |
969267 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
10 |
VALVE HALF CONE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER + MAXISCOOTER -285846 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
11 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/3/img/70973.jpg)
12 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE, PRIMAVERA 4 STROKE, VESPA-S 4 STROKE, SPRINT 4 STROKE -969393 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/7/img/66337.jpg)
13 |
319242 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
14 |
969224 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
969972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
16 |
GASKET FOR DRAIN CAP OR MANOMETER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -486075- More informationQuantity required : 1 |
