Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

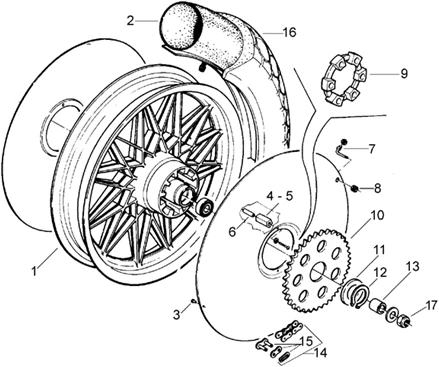

Chassis : 28.30 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_28.30.PNG)
1 |
Roue arrière nue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
3 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 12 |
||||||
|
4 |
Caoutchouc supp.gdeb.dte |
||||||
|
5 |
Caoutchouc supp.g-boue |
||||||
|
6 |
Entretoise |
||||||
|
7 |
AP8109074 - RACCORD COUDE SOUPAPE AIR More informationQuantity required : 1 |
||||||
|
8 |
AP8220488 - CAOUTCHOUC CHAMPIGNON; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
8 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
9 |
Caoutchouc élastique |
||||||
|
10 |
AP8207048 - COURONNE More informationQuantity required : 1 |
||||||
|
11 |
Anneau butée couronne |
||||||
|
12 |
Bague seeger |
||||||
|
13 |
AP8208188 - ENTRETOISE ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
14 |
AP8207049 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
|
14 |
Chaîne |
||||||
|
15 |
AP8207019 - MAILLON DE JONCTION More informationQuantity required : 1 |
||||||
|
17 |
006844 - ECROU S00684400 More informationQuantity required : 1 |
