Vehicle Exploded View - APRILIA CLASSIC 50 1992-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

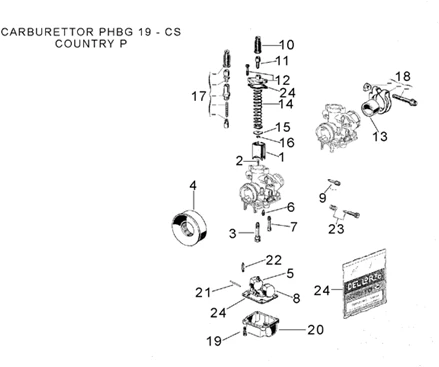

Moteur : 29.56 CARBURATEUR III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/287/Classic_50_1992-1999_29.56.PNG)
1 |
Soupape gaz |
||||||
|
2 |
Pointeau conique |
||||||
|
3 |
Gicleur |
||||||
|
4 |
Raccord prise air |
||||||
|
5 |
Jet maximum |
||||||
|
6 |
Gicleur minimum |
||||||
|
7 |
Jet démarrage |
||||||
|
8 |
Flotteur |
||||||
|
9 |
Vis rég.mélange minimum |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/0/7/img/68507.jpg)
10 |
813174 - CACHE CARBU More informationQuantity required : 0 |
||||||
|
11 |
AP8222631 - VIS TENDEUR DE FIL More informationQuantity required : 0 |
||||||
|
12 |
Kit couv. chambre mélange |
||||||
|
13 |
Réduction isolante |
||||||
|
14 |
Ressort rappel soup.gaz |
||||||
|
15 |
Plaque ret.agrafe pointeau |
||||||
|
16 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 0 |
||||||
|
17 |
AP8222647 - KIT STARTER A FIL More informationQuantity required : 0 |
||||||
|
18 |
Kit collier |
||||||
|
19 |
Vis fix. bac |
||||||
|
20 |
Cuve |
||||||
|
21 |
Axe flotteur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/7/img/65997.jpg)
22 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 50 CIAO/GILERA 50 GSM, EAGLET/APRILIA 50 CLASSIC, MX -247653- More informationQuantity required : 0 |
||||||
|
23 |
AP8222649 - KIT VIS REG.SOUPAPE GAS More informationQuantity required : 0 |
||||||
|
24 |
Sachet joints |
