Vehicle Exploded View - APRILIA CLIMBER 280 1990-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

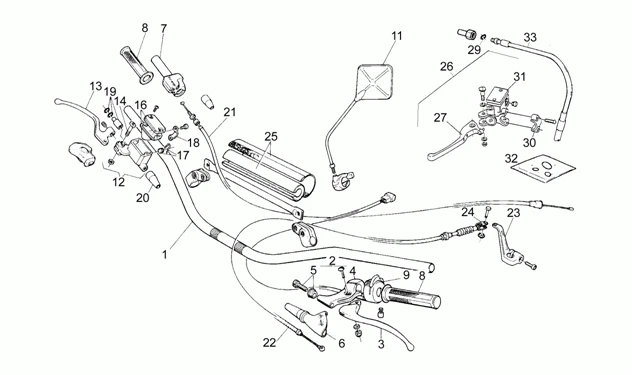

Chassis : 13 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_13.PNG)
1 |
GUIDON CLIMBER ALU (PL) |
||||||
|
1 |
GUIDON |
||||||
|
1 |
GUIDON CLIMBER ALU |
||||||
|
2 |
AP8118185 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
3 |
Levier embrayage |
||||||
|
4 |
SUPPORT LEVIER EMB |
||||||
|
5 |
AP8118197 - MOLETTE REGLAGE (PL) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/4/img/46594.jpg)
6 |
AP8120271 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
7 |
COMANDE GAZ CPLT |
||||||
|
8 |
POIGNEEE (PAIRE ) |
||||||
|
9 |
COMMODO ECLAIRAGE |
||||||
|
9 |
COMODO GAUCHE TRIAL |
||||||
|
11 |
|
||||||
|
12 |
MAITRE CYLINDRE AV |
||||||
|
13 |
LEVIER DE FREIN |
||||||
|
14 |
AP8113413 - PIVOT LEVIER FREIN More informationQuantity required : 1 |
||||||
|
16 |
AP8213477 - COUVERCLE RESERVOIR; More informationQuantity required : 1 |
||||||
|
17 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
18 |
AP8213078 - CAVALIER More informationQuantity required : 1 |
||||||
|
19 |
AP8113415 - KIT JOINT M/CYLINDRE More informationQuantity required : 1 |
||||||
|
20 |
CAPUCHON |
||||||
|
21 |
Cable gaz |
||||||
|
21 |
CABLE GAZ |
||||||
|
21 |
CABLE GAZ |
||||||
|
21 |
CABLE DE GAZ BLEU |
||||||
|
22 |
Cable de frein |
||||||
|
22 |
AP8114229 - CABLE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
22 |
CABLE EMBRYAGE |
||||||
|
23 |
LEVIER EMBRAYAGE (PL) |
||||||
|
23 |
LEVIER |
||||||
|
24 |
SUPPORT FIXATION CABLE |
||||||
|
25 |
MANCHON GUIDON (PL) |
||||||
|
25 |
PROTECTION |
||||||
|
25 |
PARACHOC GUIDON |
||||||
|
25 |
PARECHOCK GUIDON |
||||||
|
25 |
|
||||||
|
26 |
Pompe embrayage avec lev |
||||||
|
27 |
LEVIER EMBRAYAGE CLIMBER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
29 |
AP8113004 - RONDELLE More informationQuantity required : 1 |
||||||
|
30 |
AP8213078 - CAVALIER More informationQuantity required : 1 |
||||||
|
31 |
COUVERCLE RESERVOIR M.C |
||||||
|
32 |
KIT JOINTS |
||||||
|
33 |
TUBE EMBRAYAGE CLIMBER |
