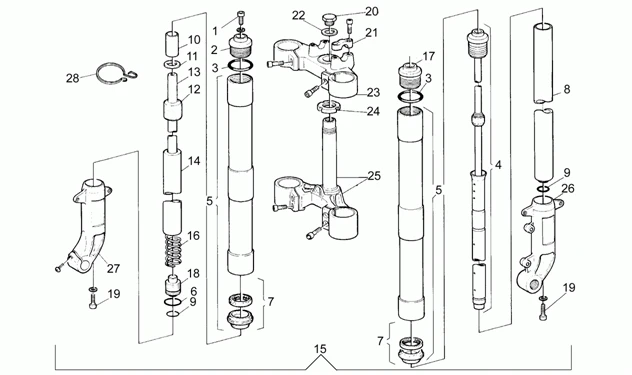

Chassis : 9 FOURCHE AV. L/M/N/P
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/289/Climber_280_1990-1994_9.PNG)
1 |
VIS BTR |
||||||
|
1 |
VIS BTR |
||||||
|
2 |
BOUCHON FOURCHE |
||||||
|
2 |
BOUCHON DE FOURCHE |
||||||
|
3 |
BAQUE D'ETANCHEITE |
||||||
|
4 |
CARTOUCHE=8103988 |
||||||
|
5 |
MONTANT COMPL. |
||||||
|
5 |
FOURREAU DE FOURCHE |
||||||
|
5 |
|
||||||
|
6 |
BAGUE |
||||||
|
6 |
JOINT TORIQUE |
||||||
|
7 |
AP8123084 - PAIRE SPY 47X35X7 More informationQuantity required : 2 |
||||||
|
7 |
AP8123305 - KIT JOINT SPY 37X45X10 More informationQuantity required : 2 |
||||||
|
8 |
TUBE G.(+ 8123174) |
||||||
|
9 |
JOINT TORIQUE (PL) |
||||||
|
10 |
ENTRETOISE |
||||||
|
11 |
RONDELLE (PL) |
||||||
|
12 |
TAMPON |
||||||
|
13 |
PLONGEUR=8123308 |
||||||
|
14 |
TUBE DE FOURCHE |
||||||
|
15 |
FOURCHE COMPLETE=8123065 |
||||||
|
15 |
|
||||||
|
16 |
|
||||||
|
16 |
|
||||||
|
17 |
BOUCHON FOURREAU GAUCHE |
||||||
|
17 |
BOUCHON FOURREAU GAUCHE |
||||||
|
18 |
VIS FOURCHE |
||||||
|
19 |
VIS |
||||||
|
19 |
VIS M 8 X 35 (V=8205053 |
||||||
|
20 |
ECROU |
||||||
|
21 |
CAVALIER GUIDON |
||||||
|
22 |
|
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
TE INFERIEUR + TUBE |
||||||
|
25 |
TE INFERIEUR FOURCHE |
||||||
|
26 |
PORTE MOYEU G. |
||||||
|
26 |
|
||||||
|
27 |
BAS DE FOURCHE |
||||||
|
27 |
MOYEU DROIT |
||||||
|
28 |
COLLIER |
