Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

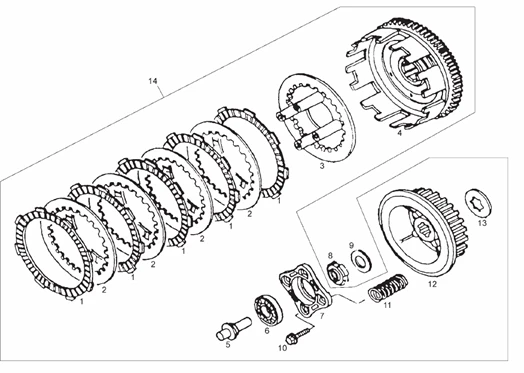

Vues éclatées : 18 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1144/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_18.png)
1 |
862752 - DISQUE More informationQuantity required : 5 |
||||||
|
2 |
862748 - DISQUE More informationQuantity required : 4 |
||||||
|
3 |
862709 - CAMPANA INTERIOR More informationQuantity required : 1 |
||||||
|
4 |
862834 - ROUE LIBRE More informationQuantity required : 1 |
||||||
|
5 |
862885 - VARILLA DE EMPUJE More informationQuantity required : 1 |
||||||
|
6 |
862727 - ROULEMENT More informationQuantity required : 1 |
||||||
|
7 |
862819 - PLACA CIERRE MUELLE EMBRAGUE More informationQuantity required : 1 |
||||||
|
8 |
862878 - ÉCROU More informationQuantity required : 1 |
||||||
|
9 |
862683 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
862864 - VIS More informationQuantity required : 1 |
||||||
|
11 |
862782 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
862707 - CAMPANA CONDUCIDA EXTERIOR More informationQuantity required : 1 |
||||||
|
13 |
862682 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
862741 - CTO EMBRAGUE COMPLETO More informationQuantity required : 1 |
