Vehicle Exploded View - DERBI CROSS CITY 125 Cross City 125 4T 2ver E3 2007-2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

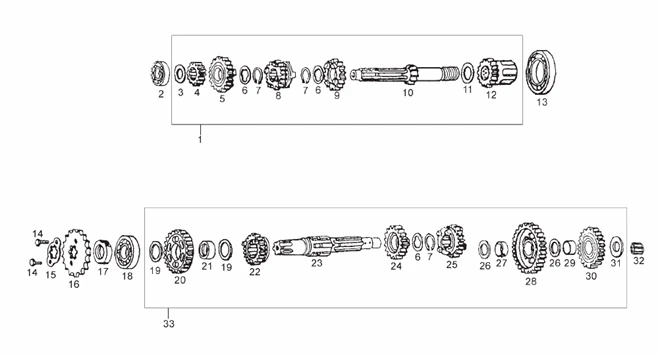

Vues éclatées : 20 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1144/Cross_City_125_4T_2ver_E3_2007-2008_(EMEA)_20.png)
1 |
862737 - CTO EJE PRIMARIO More informationQuantity required : 1 |
||||||
|
2 |
862728 - ROULEMENT More informationQuantity required : 1 |
||||||
|
3 |
862687 - RONDELLE More informationQuantity required : 1 |
||||||
|
4 |
862801 - PI-ËN 2- PRIMARIO More informationQuantity required : 1 |
||||||
|
5 |
862807 - PI-ËN 5- PRIMARIO More informationQuantity required : 1 |
||||||
|
6 |
862684 - RONDELLE More informationQuantity required : 1 |
||||||
|
7 |
862668 - ANILLO SEGURIDAD More informationQuantity required : 1 |
||||||
|
8 |
862805 - PIÐËN 4¬ PRIMARIO More informationQuantity required : 1 |
||||||
|
9 |
862803 - PIÐËN 3¬ PRIMARIO More informationQuantity required : 1 |
||||||
|
10 |
862756 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
11 |
862690 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
862810 - PIÐËN ARRANQUE More informationQuantity required : 1 |
||||||
|
13 |
862725 - ROULEMENT More informationQuantity required : 1 |
||||||
|
14 |
862856 - TORNILLO M6 X 10 More informationQuantity required : 1 |
||||||
|
15 |
862821 - PRECINTO PI-ON SALIDA CAMBIO More informationQuantity required : 1 |
||||||
|
16 |
862817 - PI-ON SALIDA CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/0/3/0/4/img/190304.jpg)
17 |
862827 - JOINT SPI More informationQuantity required : 1 |
||||||
|
18 |
862726 - ROULEMENT More informationQuantity required : 1 |
||||||
|
19 |
862691 - RONDELLE More informationQuantity required : 1 |
||||||
|
20 |
862802 - PI-ËN 2- SECUNDARIO More informationQuantity required : 1 |
||||||
|
21 |
862715 - BAGUE More informationQuantity required : 1 |
||||||
|
22 |
862808 - PIÐËN 5¬ SECUNDARIO More informationQuantity required : 1 |
||||||
|
23 |
862753 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
24 |
862806 - PI-ËN 4- SECUNDARIO More informationQuantity required : 1 |
||||||
|
25 |
862804 - PI-ËN 3- SECUNDARIO More informationQuantity required : 1 |
||||||
|
26 |
862689 - RONDELLE More informationQuantity required : 1 |
||||||
|
27 |
862713 - CASQUILLO More informationQuantity required : 1 |
||||||
|
28 |
862800 - PIÐËN 1¬ SECUNDARIO More informationQuantity required : 1 |
||||||
|
29 |
862716 - CASQUILLO More informationQuantity required : 1 |
||||||
|
30 |
862811 - PIÐËN ARRANQUE More informationQuantity required : 1 |
||||||
|
31 |
862688 - RONDELLE More informationQuantity required : 1 |
||||||
|
32 |
862717 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
33 |
862738 - CTO EJE SECUNDARIO More informationQuantity required : 1 |
