Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 1992-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

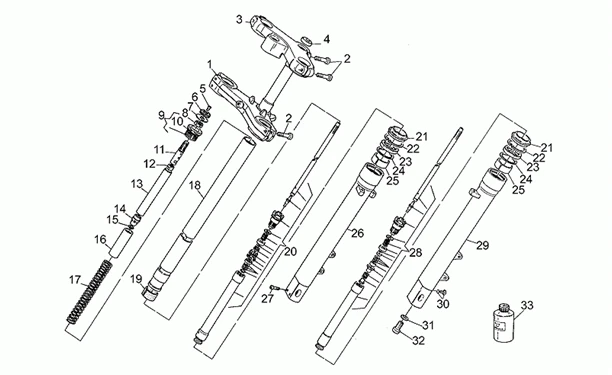

Chassis : 33.08 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_33.08.PNG)
1 |
GU30494000 - PLAQUE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
2 |
GU98622430 - VIS M8X30 More informationQuantity required : 7 |
||||||
|
3 |
Plaque sup. |
||||||
|
4 |
GU30513401 - ECROU FIXATION TETE More informationQuantity required : 1 |
||||||
|
5 |
|
||||||
|
6 |
|
||||||
|
7 |
Rondelle |
||||||
|
8 |
Ecrou |
||||||
|
9 |
Gr.bouchon cpl. |
||||||
|
10 |
GU30530508 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
11 |
Groupe réglage |
||||||
|
12 |
|
||||||
|
13 |
Entretoise |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
Tuyau |
||||||
|
17 |
|
||||||
|
18 |
Tige |
||||||
|
19 |
GU30530515 - BAGUE More informationQuantity required : 2 |
||||||
|
20 |
|
||||||
|
21 |
Anneau pare-pouss. |
||||||
|
22 |
GU30530518 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
23 |
GU30530502 - JOINT SPI More informationQuantity required : 2 |
||||||
|
24 |
|
||||||
|
25 |
GU30530520 - BAGUE More informationQuantity required : 2 |
||||||
|
26 |
Fourreau D |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/2/3/5/img/141235.jpg)
27 |
GU98620335 - VIS M6X35 More informationQuantity required : 2 |
||||||
|
28 |
AMORTISSEUR FOURCHE |
||||||
|
29 |
BAS DE FOURCHE |
||||||
|
30 |
GU30530521 - VIS AVEC OR More informationQuantity required : 2 |
||||||
|
31 |
|
||||||
|
32 |
|
||||||
|
33 |
|
