Vehicle Exploded View - MOTO-GUZZI DAYTONA 1000 1992-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

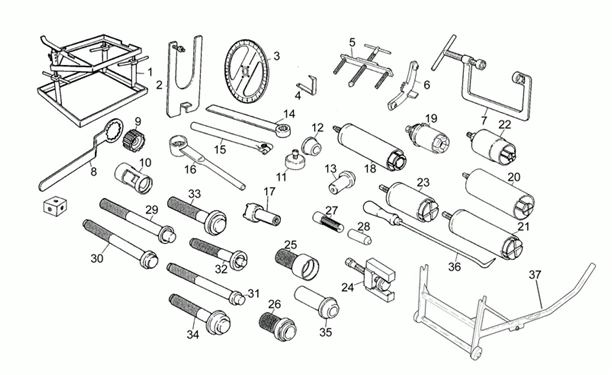

Outillage special : 36.23 SPECIFIC TOOLS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/485/Daytona_1000_1992-1995_36.23.PNG)
1 |
GU18912450 - SUPPORT MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
GU14929600 - SUPPORT POUR CARTER VITESSES More informationQuantity required : 1 |
||||||
|
3 |
Disque contr.calage distr/allu |
||||||
|
4 |
Aiguille contr.cal.distr.allum |
||||||
|
5 |
GU12913600 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
6 |
GU12911801 - OUT.BLOCAGE VOL./COUR.D'EMAR. More informationQuantity required : 1 |
||||||
|
7 |
GU10907200 - OUT.MONT./DEM.SOUPAPES More informationQuantity required : 1 |
||||||
|
8 |
GU30912810 - OUT.BLOCAGE CORP INT.EMBRAYAGE More informationQuantity required : 1 |
||||||
|
9 |
GU30906510 - OUTIL DE MONTAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
10 |
GU12905900 - OUTIL DEMONT.ARBRE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
GU14927100 - OUT.MONT.JOINT BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
12 |
GU12912000 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
13 |
GU14927200 - OUT.MONT.JOINT COUVER.DISTRIB. More informationQuantity required : 1 |
||||||
|
14 |
GU12907100 - OUTIL BLOC.ARBRE INTERM. More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
GU14905400 - BLOCAGE ARBRE INTERMEDIAIRE More informationQuantity required : 1 |
||||||
|
17 |
GU14912603 - CLE More informationQuantity required : 1 |
||||||
|
18 |
GU14913100 - EXTRACTEUR More informationQuantity required : 1 |
||||||
|
19 |
Extract.piste int. |
||||||
|
20 |
EXTRACTEUR |
||||||
|
21 |
Extract.piste ext.roulement |
||||||
|
22 |
Extract.roulement à billes |
||||||
|
23 |
GU12906900 - EXTRACTEUR ENGRENAGES CONIQUES More informationQuantity required : 1 |
||||||
|
24 |
GU17948360 - EXTRACT.PISTE INT.ROULEMENT More informationQuantity required : 1 |
||||||
|
25 |
|
||||||
|
26 |
GU17948860 - POINC.PISTE EXT.ROULEMENT More informationQuantity required : 1 |
||||||
|
27 |
GU17945460 - POINC.BAGUE INTERNE More informationQuantity required : 1 |
||||||
|
28 |
GU14928600 - POINC.BAGUE INTERNE More informationQuantity required : 1 |
||||||
|
29 |
GU14928900 - POINT.PRESS.ROUL.ARBRES TRANS. More informationQuantity required : 1 |
||||||
|
30 |
Point.presser joint fourreau |
||||||
|
31 |
GU14928800 - OUTIL POUR PRESSER More informationQuantity required : 1 |
||||||
|
32 |
GU14929000 - OUTIL POUR PRESSER More informationQuantity required : 1 |
||||||
|
33 |
Poinç.carter huile |
||||||
|
34 |
GU14929500 - POINC.CARTER HUILE More informationQuantity required : 1 |
||||||
|
35 |
GU17945160 - OUTIL POUR PRESSER More informationQuantity required : 1 |
||||||
|
36 |
GU14929300 - OUTIL More informationQuantity required : 1 |
||||||
|
37 |
GU00979717 - CAVALLETTO CENTRALE More informationQuantity required : 1 |
