Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

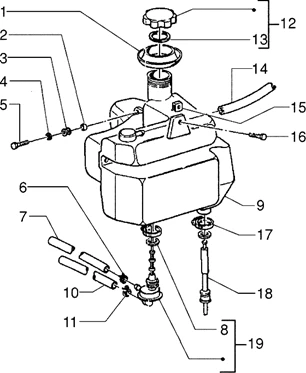

Châssis : T22 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/671/Easy_Moving_1998-2005_T22.PNG)
1 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/9/img/66019.jpg)
2 |
257302 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
3 |
257301 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
4 |
179575 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
5 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/1/img/72891.jpg)
6 |
CM002904 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
7 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE ( 5M ROLL) -1R000160 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
8 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868 More informationQuantity required : 1 |
||||||
|
9 |
RESERVOIR ESSENCE |
||||||
|
10 |
252832 - TUBE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
11 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/8/9/img/76989.jpg)
12 |
255100 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
13 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160 More informationQuantity required : 1 |
||||||
|
14 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
16 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
17 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888 More informationQuantity required : 1 |
||||||
|
18 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/7/3/img/77073.jpg)
19 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 50 ZIP 1998>2003 -259346 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/5/2/1/img/80521.jpg)
20 |
FUEL TAP "PIAGGIO GENUINE PART" 50 TYPHOON 1997>, NRG 1998>, LIBERTY 1998>, ZIP 1996>/GILERA 50 STALKER 1997> -575331 More informationQuantity required : 1 |
