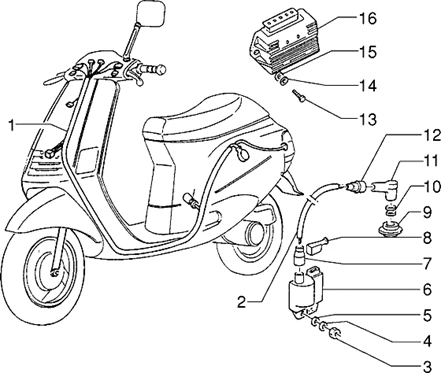

Vehicle Exploded View - GILERA EASY MOVING 50 1998-2005

	P2R reference
	Maker reference	294191

COMMUTATEUR

	P2R reference	65970
	Maker reference	234390

234390 - BATTERIE 12V/4 AH YUASA YB4L-B

	P2R reference	77648
	Maker reference	291919

291919 - GROUPE CABLES

	P2R reference
	Maker reference	292814

GROUPE CABLES

	P2R reference	65668
	Maker reference	0803415

HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341

	P2R reference	66252
	Maker reference	292364

HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC SCOOTER RANGE 1998>2005 -292364-

	P2R reference	67203
	Maker reference	58115R

RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC (12V-80A) -58115R-

	P2R reference	67172
	Maker reference	58034R

HORN "PIAGGIO GENUINE PART" 125 MP3, VESPA LX, PRIMAVERA, SPRINT/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -58034R-

	P2R reference	65460
	Maker reference	0201055

020105 - ECROU S02010500

	P2R reference	65380
	Maker reference	0155585

015558 - VIS

	P2R reference	65415
	Maker reference	0164055

016405 - RONDELLE S01640500

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	65428
	Maker reference	0166865

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686

	P2R reference	65637
	Maker reference	0310865

031086 - VIS S03108600

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	77838
	Maker reference	295652

CYLINDER LOCK WITH KEYS "PIAGGIO GENUINE PART" 50 ZIP 1998>2003 -295652

	P2R reference	206088
	Maker reference	1D004175R

CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376-

	P2R reference	139463
	Maker reference	1792925

LOCK KEY SET (3 PIECES) "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2004, 125 SKIPPER, 125 VESPA PX -1792925-

	P2R reference	206088
	Maker reference	1D002376

CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D002376-

	P2R reference	85535
	Maker reference	638678

IGNITION COIL - ELECTRONIC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE OF OLDER SCOOTERS 1995>2002 -638678-

	P2R reference	66024
	Maker reference	257710

KEYBLANK "PIAGGIO GENUINE PART" 50 NRG, TYPHOON , ZIP 1998>2005 -257710

	P2R reference	66246
	Maker reference	291017

291017 - SUPPORT

	P2R reference	65966
	Maker reference	231571

231571 - CAPUCHON

	P2R reference	77948
	Maker reference	2977775

LOCK BODY "PIAGGIO GENUINE PART" 50 TYPHOON 1998>2009, NRG 1998>2004, ZIP 1995>1999125 PX/GILERA 50 STALKER -2977775

	P2R reference
	Maker reference	291000

GROUPE DIODE

	P2R reference	66010
	Maker reference	255256

255256 - CAPUCHON

	P2R reference	65784
	Maker reference	178559

KEY LOCK PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -178559-

	P2R reference	73681
	Maker reference	0069635

006963 - RONDELLE

	P2R reference	77566
	Maker reference	288633

288633 - COLLIER

	P2R reference
	Maker reference	259421

CORPS DE SERRURE

	P2R reference	65451
	Maker reference	0200035

020003 - ECROU S02000300

	P2R reference	74563
	Maker reference	114164

114164 - CAPUCHON

	P2R reference	77653
	Maker reference	292071

292071 - COMMUTATEUR

	P2R reference
	Maker reference	292314

CONTACT

	P2R reference	66242
	Maker reference	290405

290405 - SUPPORT

	P2R reference	74503
	Maker reference	103936

103936 - ANTIPARASITE

	P2R reference	65661
	Maker reference	0716715

071671 - CAPUCHON

	P2R reference	66273
	Maker reference	294398

ELECTRIC STARTER SWITH "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 1998>2005 -294398-

	P2R reference	66278
	Maker reference	294917

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 1998>2005 -294917

	P2R reference	65380
	Maker reference	0155585

015558 - VIS

	P2R reference	66004
	Maker reference	252945

252945 - FUSIBLE 7,5A

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	77603
	Maker reference	290402

FUSE HOLDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 1998>2005, 125 VESPA PX -290402-

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	77731
	Maker reference	2940165

VOLTAGE REGULATOR- (OLD MOUNT - 5 PLUGS) "PIAGGIO GENUINE PART" 50 TYPHOON, ZIP, NRG, SFERA 1995>2002/GILERA 50 STALKER 1997>2000 -2940165-
