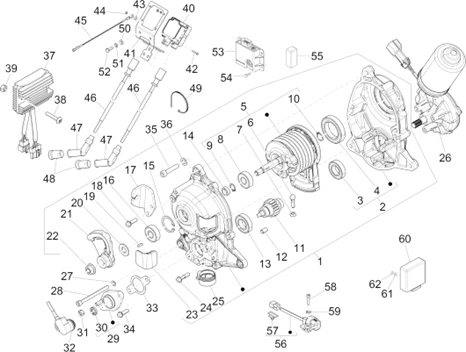

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014

	P2R reference	90183
	Maker reference	667185

ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 - 667185

	P2R reference	93048
	Maker reference	846939

846939 - BOITE DISP.ANTIROLLIO

	P2R reference	92733
	Maker reference	82627R

82627R - ROULEMENT

	P2R reference	93050
	Maker reference	846977

846977 - ROULEMENT

	P2R reference	86866
	Maker reference	648641

648641 - GR.RESSORT

	P2R reference	86870
	Maker reference	648700

648700 - TIRANT

	P2R reference	65474
	Maker reference	020206

020206 - ECROU S02020600

	P2R reference	92983
	Maker reference	843701

843701 - ROULEMENT

	P2R reference	63812
	Maker reference	006412

006412 - CIRCLIPS S00641200

	P2R reference	109777
	Maker reference	006414

006414 - CIRCLIPS S00641400

	P2R reference	90166
	Maker reference	667172

667172 - AXE PIGNON

	P2R reference	66142
	Maker reference	277916

CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916-

	P2R reference	92733
	Maker reference	82627R

82627R - ROULEMENT

	P2R reference	93047
	Maker reference	846834

846834 - ENTRETOISE

	P2R reference	63822
	Maker reference	006632

006632 - ANNEAU ELAST. S00663200

	P2R reference	92983
	Maker reference	843701

843701 - ROULEMENT

	P2R reference	86897
	Maker reference	649025

649025 - PLAQUE

	P2R reference	65447
	Maker reference	018639

018639 - VIS

	P2R reference	63721
	Maker reference	000267

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

	P2R reference	86613
	Maker reference	646516

646516 - ENTRETOISE

	P2R reference	86953
	Maker reference	649402

649402 - LEVIER

	P2R reference	66225
	Maker reference	289519

NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519

	P2R reference	86682
	Maker reference	647190

647190 - BOUCHON

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792-

	P2R reference	86872
	Maker reference	648800

648800 - JOINT

	P2R reference	81605
	Maker reference	58159R

ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -58159R-

	P2R reference	66605
	Maker reference	481032

481032 - VIS DE FILTRE FX

	P2R reference	63838
	Maker reference	006966

006966 - RONDELLE S00696600

	P2R reference	90169
	Maker reference	667179

667179 - PLAQUE POUR SENSOR

	P2R reference	90165
	Maker reference	667171

667171 - BAGUE ETANCHEITEE

	P2R reference	65818
	Maker reference	195482

195482 - ECROU

	P2R reference	146568
	Maker reference	6425555

ROTARY SENSOR "PIAGGIO GENUINE PART" 125-300-500 MP3 -6425555-

	P2R reference	86947
	Maker reference	649367

649367 - JOINT

	P2R reference	65447
	Maker reference	018639

018639 - VIS

	P2R reference	78329
	Maker reference	319538

319538 - VIS

	P2R reference	63803
	Maker reference	006125

006125 - RONDELLE S00612500

	P2R reference	67823
	Maker reference	639110

VOLTAGE REGULATOR-"PIAGGIO GENUINE PART" 250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, 250-400 X-EVO, X8/GILERA 125-250-300-500 NEXUS/APRILIA 250-300-400-500 ATLANTIC, SCARABEO -639110

	P2R reference	66041
	Maker reference	259708

259708 - BOULON

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245-

	P2R reference	67826
	Maker reference	639187

IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO, 800 GP/APRILIA 850 SRV, MANA, 500 SCARABEO -639187-

	P2R reference	86087
	Maker reference	641020

641020 - PLAQUE

	P2R reference	69155
	Maker reference	840543

840543 - VIS

	P2R reference	65343
	Maker reference	012531

012531 - RONDELLE S01253100

	P2R reference	65459
	Maker reference	020104

020104 - ECROU S02010400

	P2R reference	86013
	Maker reference	640688

640688 - CABLE

	P2R reference	65668
	Maker reference	080341

HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341

	P2R reference	66266
	Maker reference	293845

SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845

	P2R reference	67937
	Maker reference	641643

SPARK PLUG PROTECTION CLAMP "PIAGGIO GENUINE PART" -641643

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	65416
	Maker reference	016406

016406 - RONDELLE S01640600

	P2R reference	63841
	Maker reference	006976

006976 - RONDELLE S00697600

	P2R reference	65640
	Maker reference	031089

031089 - BOULON S03108900

	P2R reference	85952
	Maker reference	640439

ELECTRONIC PARKING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -640439-

	P2R reference	72706
	Maker reference	B016426

B016426 - VIS TEF M6X14

	P2R reference	67871
	Maker reference	1D0013915

FLASHER UNIT "PIAGGIO GENUINE PART" 125-250-400 X-EVO, 125-250-300-400-500 MP3, 125-350-500 X10, 250-500 BEVERLY/GILERA 500 FUOCO -1D0013915

	P2R reference	85879
	Maker reference	640063

END OF THE STROKE SWITCH - SUSPENSION BLOCKING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640063-

	P2R reference	85755
	Maker reference	639560

639560 - RESSORT

	P2R reference	110679
	Maker reference	615795

615795 - VIS

	P2R reference	73681
	Maker reference	006963

006963 - RONDELLE

	P2R reference	86148
	Maker reference	641288

ELECTRO ACTUATOR CONTROL UNIT - OPENING SEAT "PIAGGIO GENUINE PART" 125-250-400 X-EVO, X8, MP3/GILERA 500 NEXUS, FUOCO, 800 GP -641288-

	P2R reference	65428
	Maker reference	016686

WASHER (5,2X18X1,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -016686

	P2R reference	65984
	Maker reference	241937

241937 - ECROU
