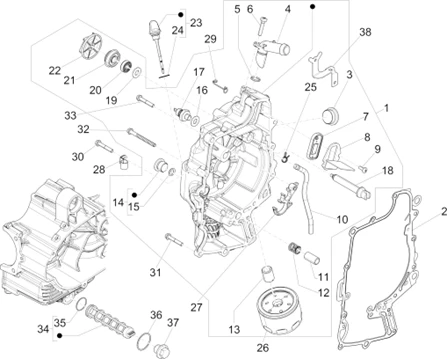

Vehicle Exploded View - GILERA FUOCO 500 4T-4V ie E3 LT 2013-2014

	P2R reference	72766
	Maker reference	B0174635

WATER PUMP COVER (COMPLETE)"PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC -B0174635

	P2R reference	70446
	Maker reference	872914

GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -872914

	P2R reference	72673
	Maker reference	B015433

B015433 - PLUG VISSES

	P2R reference	68811
	Maker reference	829047

829047 - TUYAU HUILE

	P2R reference	65977
	Maker reference	237553

237553 - JOINT O RING

	P2R reference	127167
	Maker reference	1A003109

1A003109 - VIS M5X16

	P2R reference	68695
	Maker reference	82778R

82778R - SUPPORT

	P2R reference	70596
	Maker reference	876060

876060 - TOLE

	P2R reference	66440
	Maker reference	433800

433800 - BOULON

	P2R reference	93120
	Maker reference	871795

871795 - DURITE EAU HAUTE

	P2R reference	68864
	Maker reference	829661

829661 - VOLET HUILE

	P2R reference	68848
	Maker reference	829486

829486 - RESSORT

	P2R reference	68817
	Maker reference	829122

OIL FILTER UNION "PIAGGIO GENUINE PART" COMMON FOR MAXISCOOTERS 400-500 CC AND MOTO-GUZZI -829122

	P2R reference	68810
	Maker reference	8290405

TIMING CONTROL CAP - ON WATER PUMP HOUSING "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -8290405-

	P2R reference	158280
	Maker reference	1A009397

1A009397 - JOINT "OR"

	P2R reference	158280
	Maker reference	479986

1A009397 - JOINT "OR"

	P2R reference	72621
	Maker reference	AP9150472

WASHER (10,5X17X1,5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER+ MOTO -AP9150472

	P2R reference	67933
	Maker reference	641541

SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138

	P2R reference	70431
	Maker reference	872536

OIL PUMP AXLE "PIAGGIO GENUINE PART" PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO -872536

	P2R reference	66132
	Maker reference	274246

WASHER (22X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -274246

	P2R reference	174611
	Maker reference	1A018564

1A018564 - SEAL RING

	P2R reference	174611
	Maker reference	873934

1A018564 - SEAL RING

	P2R reference	68876
	Maker reference	82991R

WATER PUMP GASKET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -82991R

	P2R reference	151528
	Maker reference	1A002345

WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345

	P2R reference	151528
	Maker reference	827929

WATER PUMP IMPELLER "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 400-500 CC -1A002345

	P2R reference	68991
	Maker reference	832130

OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130-

	P2R reference	68643
	Maker reference	827085

827085 - JOINT

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901

	P2R reference	68859
	Maker reference	82960R

OIL FILTER "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850 -82960R-

	P2R reference	93085
	Maker reference	849825

849825 - COLLIER

	P2R reference	69377
	Maker reference	845978

845978 - COLLIER

	P2R reference	67914
	Maker reference	641201

641201 - RESSORT

	P2R reference	66367
	Maker reference	414838

SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66452
	Maker reference	434429

434429 - VIS

	P2R reference	72721
	Maker reference	B016775

B016775 - VIS M6X50

	P2R reference	68577
	Maker reference	826033

OIL FILTER STRAINER "PIAGGIO GENUINE PART" 400-500 MP3 2007>, BEVERLY 2005>, 400 X8 2004>, X-EVO 2007>, 500 X10 2012>, X9 2003>/GILERA 500 FUOCO, NEXUS 2005>/APRILIA 400-500 ATLANTIC 2003> -826033

	P2R reference	66191
	Maker reference	288474

OIL FILTER GASKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300 X7, X8, X-EVO, X9, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA 50-125 SR-MOTARD, SPORT-CITY/GILERA 500 FUOCO -288474

	P2R reference	66149
	Maker reference	285536

GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536

	P2R reference	68589
	Maker reference	826165

OIL FILTER PLUG "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -826165-

	P2R reference	75381
	Maker reference	1A002535

1A002535 - BRIDE
