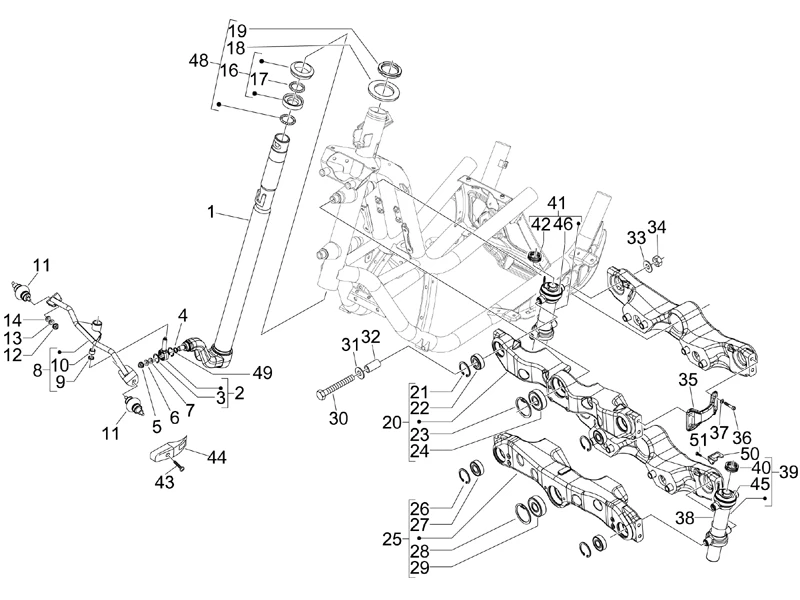

Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013

	P2R reference	82170
	Maker reference	58568R

STEERING CONTROL TUBE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2008>/GILERA 500 FUOCO 2007> -58568R-

	P2R reference	84644
	Maker reference	622751

STEERING TUBE CONTROL AXIS "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -622751-

	P2R reference	73678
	Maker reference	006628

SNAP RING FOR TORQUE DRIVER "PIAGGIO GENUINE PART" FLY 125-150, LIBERTY 125-150, MP3 125-250-300-400-500/125 VESPA LX, GTS, VESPA-S -006628

	P2R reference	63808
	Maker reference	006408

CLIP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER -006408-

	P2R reference	70925
	Maker reference	967363

967363 - ECROU

	P2R reference	73670
	Maker reference	006032

006032 - RONDELLE S00603200

	P2R reference	63773
	Maker reference	003038

003038 - RONDELLA PIANA 8,4X18X2

	P2R reference	84643
	Maker reference	622744

COMPLETE STEERING CONTROL ROD "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -622744-

	P2R reference	113988
	Maker reference	167018

GASKET RING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -167018-

	P2R reference	112144
	Maker reference	167016

ROLLER BEARING FOR STEERING ROD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -167016-

	P2R reference	90108
	Maker reference	666901

STEERING BALL JOINT "PIAGGIO GENUINE PART" MP3 125 2006>2013/MP3 300 2009>2015/MP3 400 2007>2010/MP3 500 2001>2016 -666901-

	P2R reference	70925
	Maker reference	967363

967363 - ECROU

	P2R reference	86701
	Maker reference	647494

647494 - RONDELLE

	P2R reference	65364
	Maker reference	013861

MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861-

	P2R reference	68161
	Maker reference	650693

UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345

	P2R reference	152886
	Maker reference	564257

HEADSET UPPER BEARING "PIAGGIO GENUINE PART" 50 TYPHOON 2018>/APRILIA 50 SR MOTARD 2018> -564257

	P2R reference	63783
	Maker reference	0037514

STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514-

	P2R reference	65339
	Maker reference	0111094

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

	P2R reference	86625
	Maker reference	646556

FRONT SUSPENSION ARM - LOWER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -646556

	P2R reference	63823
	Maker reference	006635

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

	P2R reference	67481
	Maker reference	601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345-

	P2R reference	63825
	Maker reference	006647

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

	P2R reference	82999
	Maker reference	601467

601467 - ROULEMENT

	P2R reference	86626
	Maker reference	646561

646561 - BRAS SUSPENSION AVT HAUT AR BAS

	P2R reference	63823
	Maker reference	006635

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635-

	P2R reference	67481
	Maker reference	601345

REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345-

	P2R reference	63825
	Maker reference	006647

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647

	P2R reference	82999
	Maker reference	601467

601467 - ROULEMENT

	P2R reference	65624
	Maker reference	030113

030113 - BOULON 273140

	P2R reference	109020
	Maker reference	1A000427

1A000427 - RONDELLE PLATE

	P2R reference	83987
	Maker reference	621288

FRONT SUSPENSION PIV. BUSH"PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -621288

	P2R reference	65346
	Maker reference	012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

	P2R reference	67084
	Maker reference	564878

564878 - ECROU

	P2R reference	86621
	Maker reference	646543

646543 - SUPPORT

	P2R reference	71063
	Maker reference	975855

975855 - VIS

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

	P2R reference	151456
	Maker reference	1C003013

1C003013 - TUBE

	P2R reference	82932
	Maker reference	6007705

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO GAUCHE -6007705

	P2R reference	65339
	Maker reference	0111094

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

	P2R reference	86680
	Maker reference	6471835

HEADSET "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO DROIT -6471835

	P2R reference	65339
	Maker reference	0111094

NUT - FOR STEERING FASTENING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -0111094-

	P2R reference	139385
	Maker reference	1A002998

1A002998 - VIS M5X22

	P2R reference	86683
	Maker reference	647202

CARDAN JOINT SMALL COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -647202

	P2R reference	67455
	Maker reference	600750

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

	P2R reference	67455
	Maker reference	600750

UPPER HEADSET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 -600750

	P2R reference	83056
	Maker reference	6019175

HEADSET "PIAGGIO GENUINE PART" 125-250-400 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -6019175-

	P2R reference	111207
	Maker reference	224202

O'RING GASKET (8.73X1.78) "PIAGGIO GENUINE PART" -224202

	P2R reference	85435
	Maker reference	624854

624854 - BLOC

	P2R reference	70959
	Maker reference	969296

969296 - BOULON
