Vehicle Exploded View - GILERA FUOCO 500 E3 2007-2013 GILERA

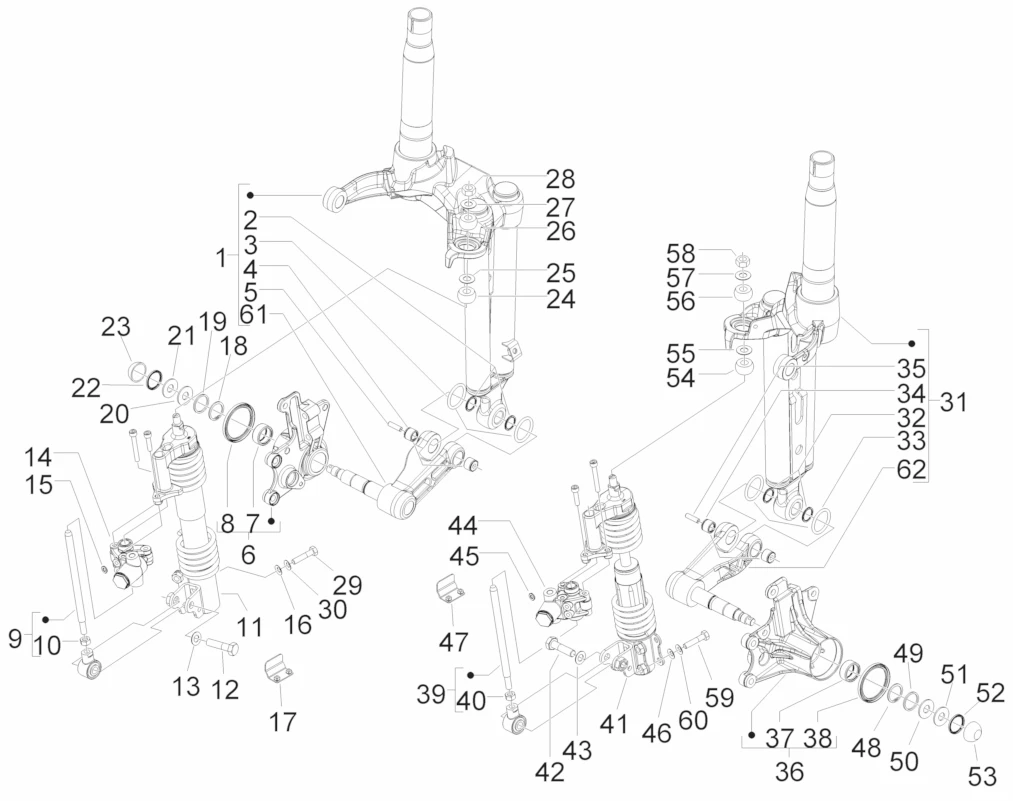

Suspensions - roues : 04.07 COMPONENTI DELLA FORCELLA (MINGXING)
Componenti della forcella (Mingxing)
Search
RIGHT FRONT FORK "PIAGGIO GENUINE PART"PIAGGIO 125-250-300-400-500 MP3 2006>2017 -6014745-

1
P2R reference P2R reference 83000
Maker reference Maker reference 6014745

RIGHT FRONT FORK "PIAGGIO GENUINE PART"PIAGGIO 125-250-300-400-500 MP3 2006>2017 -6014745-

More information

Quantity required : 1

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

2
P2R reference P2R reference 65707
Maker reference Maker reference 119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

More information

Quantity required : 2

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

3
P2R reference P2R reference 63834
Maker reference Maker reference 006731

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

More information

Quantity required : 2

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

4
P2R reference P2R reference 75262
Maker reference Maker reference 198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

More information

Quantity required : 2

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

5
P2R reference P2R reference 65779
Maker reference Maker reference 177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

More information

Quantity required : 1

RIGHT BRAKE CALIPER SUPPORT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6018905

6
P2R reference P2R reference 83051
Maker reference Maker reference 6018905

RIGHT BRAKE CALIPER SUPPORT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6018905

More information

Quantity required : 1

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

7
P2R reference P2R reference 75022
Maker reference Maker reference 177436
Replaced by référence Replaced by référence 198561

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

More information

Quantity required : 2

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

8
P2R reference P2R reference 75025
Maker reference Maker reference 177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

More information

Quantity required : 1

RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683-

9
P2R reference P2R reference 86982
Maker reference Maker reference 649683

RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683-

More information

Quantity required : 1

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

10
P2R reference P2R reference 65463
Maker reference Maker reference 020108

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1

FRONT/RIGHT SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -56432R

11
P2R reference P2R reference 80046
Maker reference Maker reference 56432R

FRONT/RIGHT SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -56432R

More information

Quantity required : 1

649392 - VIS

12
P2R reference P2R reference 86952
Maker reference Maker reference 649392

649392 - VIS

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

13
P2R reference P2R reference 65346
Maker reference Maker reference 012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

More information

Quantity required : 1

COMPLETE RIGHT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601907

14
P2R reference P2R reference 83052
Maker reference Maker reference 601907

COMPLETE RIGHT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601907

More information

Quantity required : 1

006976 - RONDELLE S00697600

15
P2R reference P2R reference 63841
Maker reference Maker reference 006976

006976 - RONDELLE S00697600

More information

Quantity required : 2

003058 - RONDELLE S00305800

16
P2R reference P2R reference 63779
Maker reference Maker reference 003058

003058 - RONDELLE S00305800

More information

Quantity required : 2

FRONT SUSPENSION BRACKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-350-400-500 MP3 -649259-

17
P2R reference P2R reference 86932
Maker reference Maker reference 649259

FRONT SUSPENSION BRACKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-350-400-500 MP3 -649259-

More information

Quantity required : 1

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

18
P2R reference P2R reference 63816
Maker reference Maker reference 006422

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

More information

Quantity required : 1

177408 - BAGUE

19
P2R reference P2R reference 65776
Maker reference Maker reference 177408

177408 - BAGUE

More information

Quantity required : 1

177414 - ENTRETOISE

20
P2R reference P2R reference 75021
Maker reference Maker reference 177414

177414 - ENTRETOISE

More information

Quantity required : 1

177445 - ENTRETOISE

21
P2R reference P2R reference 75024
Maker reference Maker reference 177445

177445 - ENTRETOISE

More information

Quantity required : 1

177521 - BAGUE ETANCHEITE

22
P2R reference P2R reference 75028
Maker reference Maker reference 177521

177521 - BAGUE ETANCHEITE

More information

Quantity required : 1

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

23
P2R reference P2R reference 76015
Maker reference Maker reference 092517

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

More information

Quantity required : 1

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

24
P2R reference P2R reference 74966
Maker reference Maker reference 174085

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

25
P2R reference P2R reference 65346
Maker reference Maker reference 012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

More information

Quantity required : 1

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

26
P2R reference P2R reference 65770
Maker reference Maker reference 174874

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

More information

Quantity required : 1

174088 - RONDELLE

27
P2R reference P2R reference 74967
Maker reference Maker reference 174088

174088 - RONDELLE

More information

Quantity required : 1

021210 - ECROU EX 319438 + S02121000

28
P2R reference P2R reference 73964
Maker reference Maker reference 021210

021210 - ECROU EX 319438 + S02121000

More information

Quantity required : 1

826298 - VIS

29
P2R reference P2R reference 68593
Maker reference Maker reference 826298

826298 - VIS

More information

Quantity required : 2

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

30
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 2

LEFT FRONT FORK "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-400-500 MP3 -6012735-

31
P2R reference P2R reference 82983
Maker reference Maker reference 6012735

LEFT FRONT FORK "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-400-500 MP3 -6012735-

More information

Quantity required : 1

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

32
P2R reference P2R reference 65707
Maker reference Maker reference 119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219-

More information

Quantity required : 2

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

33
P2R reference P2R reference 63834
Maker reference Maker reference 006731

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731-

More information

Quantity required : 2

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

34
P2R reference P2R reference 75262
Maker reference Maker reference 198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513-

More information

Quantity required : 2

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

35
P2R reference P2R reference 65779
Maker reference Maker reference 177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451-

More information

Quantity required : 1

LEFT BRAKE CALIPER SUPPORT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6018835

36
P2R reference P2R reference 83050
Maker reference Maker reference 6018835

LEFT BRAKE CALIPER SUPPORT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6018835

More information

Quantity required : 1

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

37
P2R reference P2R reference 75022
Maker reference Maker reference 177436
Replaced by référence Replaced by référence 198561

ROLLER BEARING FOR DRAWN CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -177436

More information

Quantity required : 2

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

38
P2R reference P2R reference 75025
Maker reference Maker reference 177494

BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494-

More information

Quantity required : 1

RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683-

39
P2R reference P2R reference 86982
Maker reference Maker reference 649683

RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683-

More information

Quantity required : 1

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

40
P2R reference P2R reference 65463
Maker reference Maker reference 020108

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108-

More information

Quantity required : 1

FRONT/LEFT SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -56431R

41
P2R reference P2R reference 80044
Maker reference Maker reference 56431R

FRONT/LEFT SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -56431R

More information

Quantity required : 1

649392 - VIS

42
P2R reference P2R reference 86952
Maker reference Maker reference 649392

649392 - VIS

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

43
P2R reference P2R reference 65346
Maker reference Maker reference 012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

More information

Quantity required : 1

COMPLETE LEFT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601727

44
P2R reference P2R reference 83037
Maker reference Maker reference 601727

COMPLETE LEFT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601727

More information

Quantity required : 1

006976 - RONDELLE S00697600

45
P2R reference P2R reference 63841
Maker reference Maker reference 006976

006976 - RONDELLE S00697600

More information

Quantity required : 2

003058 - RONDELLE S00305800

46
P2R reference P2R reference 63779
Maker reference Maker reference 003058

003058 - RONDELLE S00305800

More information

Quantity required : 2

FRONT SUSPENSION BRACKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-350-400-500 MP3 -649259-

47
P2R reference P2R reference 86932
Maker reference Maker reference 649259

FRONT SUSPENSION BRACKET "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-350-400-500 MP3 -649259-

More information

Quantity required : 1

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

48
P2R reference P2R reference 63816
Maker reference Maker reference 006422

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422-

More information

Quantity required : 1

177408 - BAGUE

49
P2R reference P2R reference 65776
Maker reference Maker reference 177408

177408 - BAGUE

More information

Quantity required : 1

177414 - ENTRETOISE

50
P2R reference P2R reference 75021
Maker reference Maker reference 177414

177414 - ENTRETOISE

More information

Quantity required : 1

177445 - ENTRETOISE

51
P2R reference P2R reference 75024
Maker reference Maker reference 177445

177445 - ENTRETOISE

More information

Quantity required : 1

177521 - BAGUE ETANCHEITE

52
P2R reference P2R reference 75028
Maker reference Maker reference 177521

177521 - BAGUE ETANCHEITE

More information

Quantity required : 1

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

53
P2R reference P2R reference 76015
Maker reference Maker reference 092517

COVER - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+MAXISCOOTER - CHROME -1C000523

More information

Quantity required : 1

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

54
P2R reference P2R reference 74966
Maker reference Maker reference 174085

FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085-

More information

Quantity required : 1

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

55
P2R reference P2R reference 65346
Maker reference Maker reference 012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

More information

Quantity required : 1

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

56
P2R reference P2R reference 65770
Maker reference Maker reference 174874

RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874-

More information

Quantity required : 1

174088 - RONDELLE

57
P2R reference P2R reference 74967
Maker reference Maker reference 174088

174088 - RONDELLE

More information

Quantity required : 1

021210 - ECROU EX 319438 + S02121000

58
P2R reference P2R reference 73964
Maker reference Maker reference 021210

021210 - ECROU EX 319438 + S02121000

More information

Quantity required : 1

826298 - VIS

59
P2R reference P2R reference 68593
Maker reference Maker reference 826298

826298 - VIS

More information

Quantity required : 2

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

60
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

More information

Quantity required : 2

6483985 - BRAS SUSPENSION AV.DRT

61
P2R reference P2R reference 86837
Maker reference Maker reference 6483985

6483985 - BRAS SUSPENSION AV.DRT

More information

Quantity required : 1

FRONT SUSPENSION ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN -6483975-

62
P2R reference P2R reference 86836
Maker reference Maker reference 6483975

FRONT SUSPENSION ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125-300 YOURBAN -6483975-

More information

Quantity required : 1

All the exploded views of this vehicle

Filter :
Or choose :
