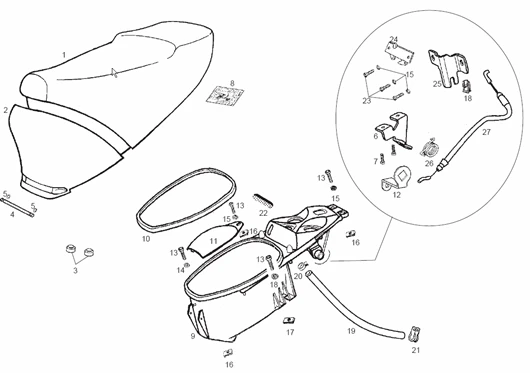

Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)

	P2R reference	194728
	Maker reference	00G00625011

00G00625011 - CTO.SILLIN PREDATOR LC GP1

	P2R reference	194729
	Maker reference	00G05902944

00G05902944 - PLAQUE FER. ARTICUL.SELLE

	P2R reference	194730
	Maker reference	00G05902945

00G05902945 - CORPS INFERIEUR SELLE

	P2R reference	63988
	Maker reference	00G01500951

00G01500951 - APPUI BEQUILLE LATERALE

	P2R reference	194731
	Maker reference	00G00601261

00G00601261 - AXE DE CHARNIERE DE SELLE

	P2R reference	63736
	Maker reference	000470304005

CLIP FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00047030400-

	P2R reference	194732
	Maker reference	00G06801061

00G06801061 - BUTEE AVANT CABLE FERM.SELLE H

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	194733
	Maker reference	00G04627141

00G04627141 - ADHESIF PRESSION PNEU

	P2R reference	194734
	Maker reference	00G06305721

00G06305721 - ENSEMB.PORTE-CASQUE AVEC PROF.

	P2R reference	64148
	Maker reference	00G06301551

00G06301551 - PROFIL PORTE-CASQUE

	P2R reference	64015
	Maker reference	00G01800221

00G01800221 - COUVERCLE ACCES CARBURATEUR

	P2R reference	194735
	Maker reference	00G00605141

00G00605141 - CAME FERMETURE SELLE HUNTER

	P2R reference	63705
	Maker reference	000121620005

00012162000 - BOULON TETE HEX.5M80X15

	P2R reference	187316
	Maker reference	00H00500212

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

	P2R reference	63786
	Maker reference	004020600015

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00402060001-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	194736
	Maker reference	00G03700461

00G03700461 - TUYAU RESPIRATION RESERVOIR HU

	P2R reference	64809
	Maker reference	00H03700131

HOSE CLAMP FOR BRAKE TANK "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H03700131-

	P2R reference	70054
	Maker reference	864454

FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR, RS, SX, RX 2004>2010 -864454

	P2R reference	194737
	Maker reference	00G01837101

00G01837101 - PLAQUE CARACTERISTIQUES

	P2R reference	63614
	Maker reference	000020520515

SCREW - FOR FAIRINGS FASTENING (5M80X15) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00002052051

	P2R reference	64153
	Maker reference	00G06800501

00G06800501 - PLAQUE VERROUILLAGE DE LA SELL

	P2R reference	187317
	Maker reference	00G06801051

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

	P2R reference	194738
	Maker reference	00G00600201

00G00600201 - RESSORT TENDEUR CABLE SELLE

	P2R reference	194739
	Maker reference	00G00601181

00G00601181 - SOUS-EN.CABLE FERMETURE SELLE
