Vehicle Exploded View - DERBI GP 50 GP Series O2 Export 2001 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

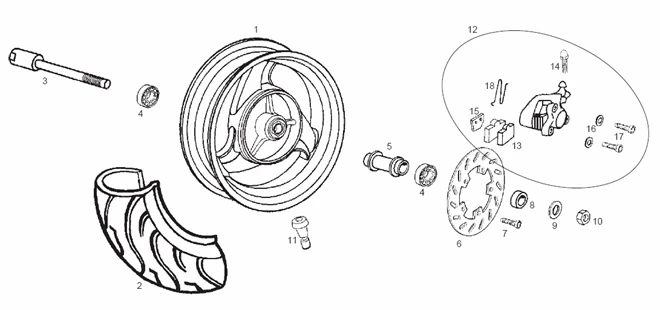

Suspensions - roues : 8 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1146/GP_Series_O2_Export_2001_(EMEA)_8.png)
1 |
00G01207953 - CTO.LLANTA DT.NEGRA PRED.O2 PG More informationQuantity required : 1 |
||||||
|
2 |
00G01210111 - CUBIERTA DT 120/70X13 (RUBBER) More informationQuantity required : 1 |
||||||
|
3 |
00G01201271 - AXE ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/0/img/69410.jpg)
4 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847016- More informationQuantity required : 1 |
||||||
|
5 |
00G01200031 - ENTRETOISE DE ROULEMENT (EPAUL More informationQuantity required : 1 |
||||||
|
6 |
00G01205021 - DISQUE DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
7 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
|
8 |
00H01301291 - ENTRETOISE ROUE ARRIERE COTE D More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/3/img/63763.jpg)
10 |
NUT - FOR FRONT WHEEL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> ROUES A RAYONS -00232120032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
11 |
270991 - VALVE More informationQuantity required : 1 |
||||||
|
12 |
00G01204192 - CTO.PINZA FR.DT.ORO PRED./2000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/2/5/img/64125.jpg)
13 |
BRAKE PADS - "PIAGGIO GENUINE PART" GILERA 50 SMT FRONT+AR, RCR FRONT+REAR /APRILIA 50 RS REAR, RX REAR, SX REAR (AJP) -00G04700141- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
14 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RS -864123 More informationQuantity required : 1 |
||||||
|
15 |
00G04700131 - CALE DE PLAQU.DE FREIN ANTI More informationQuantity required : 1 |
||||||
|
16 |
00000033080 - RONDELLE More informationQuantity required : 1 |
||||||
|
17 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/7/img/64467.jpg)
18 |
BRAKE PAD SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR/APRILIA 50 SX, RX -00H01301831- More informationQuantity required : 1 |
