Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

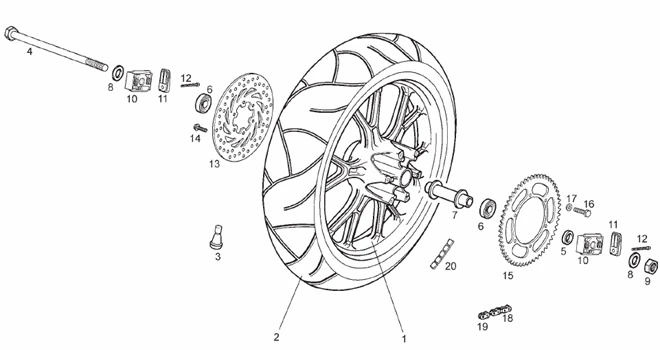

Vues éclatées : 12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1155/GPR_125_2ver_4T_E3_2009-2010_(EMEA)_12.png)
1 |
00H01310381 - JANTE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/2/9/img/70329.jpg)
1 |
867339 - ROUE AR More informationQuantity required : 1 |
||||||
|
2 |
866575 - PNEU 130/70X17" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
3 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/4/0/img/70140.jpg)
4 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO 2011> -865681- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/1/img/70191.jpg)
5 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011> -866540- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/8/1/img/67481.jpg)
6 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT 2011> -601345- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/0/0/img/64500.jpg)
7 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 125 TUONO 2017> -00H01308091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/9/0/img/70190.jpg)
8 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT AR/DERBI 50 SENDA (Ø 15 MM) -866536- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
9 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/7/5/img/64475.jpg)
10 |
WHEEL TENSIONER "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX FACTORY, RX FACTORY 2018>/GILERA 50 SMT RACING 2011> -00H01303171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/1/img/64461.jpg)
11 |
CHAIN TENSIONER PLATE "PIAGGIO GENUINE PART" 50-125 APRILIA RS4 2011>/GILERA 50 SMT RACING 2011> -00H01301471- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/4/6/2/img/64462.jpg)
12 |
SCREW - FOR CHAIN TENSIONER (8X50) "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00H01301491- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/5/4/img/70154.jpg)
13 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2011>/APRILIA 50 SX, RX 2011>, 50-125 RS4 2011> ARRIERE (Ø218 - 6 HOLES) -866115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/5/9/img/151759.jpg)
14 |
2B004560 - VIS More informationQuantity required : 1 |
||||||
|
15 |
865033 - COURONNE More informationQuantity required : 1 |
||||||
|
15 |
867341 - COURONNE More informationQuantity required : 1 |
||||||
|
16 |
864850 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
16 |
AP8152287 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/3/img/63733.jpg)
17 |
00037000600 - RONDELLA CONICA SICUREZZA D.6 More informationQuantity required : 1 |
||||||
|
18 |
864388 - CHAINE More informationQuantity required : 1 |
||||||
|
19 |
00H01502211 - ATTACHE RAPIDE More informationQuantity required : 1 |
||||||
|
20 |
864318 - CONTRAPESO RUEDAS 715 50GR. More informationQuantity required : 1 |
