Vehicle Exploded View - DERBI GPR 125 2ver 4T E3 2009-2010 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

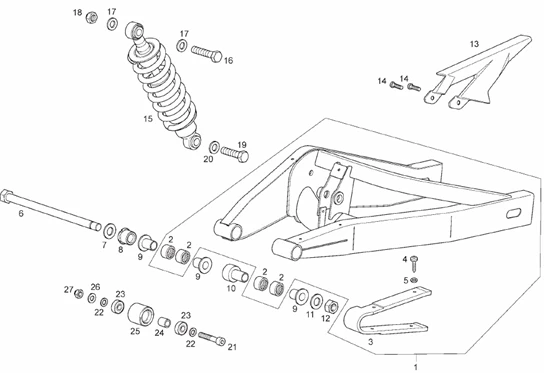

Vues éclatées : 3 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1155/GPR_125_2ver_4T_E3_2009-2010_(EMEA)_3.png)
1 |
86561001WN6 - SCTO.BSCLNT.NGR.BSLTO.GPR125 09 (C) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/6/img/67416.jpg)
2 |
ROLLER BEARING FOR SWINGING ARM "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY -600161 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/2/3/img/64623.jpg)
3 |
CHAIN GUIDE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00H01804331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/7/img/63687.jpg)
4 |
SCREW - FOR RADIATOR GRILLE COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00011141300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/1/img/64231.jpg)
6 |
00H00305411 - AXE DE BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
7 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/3/1/img/70131.jpg)
8 |
865615 - TCA.REGUL.BSCLNT.CHASIS GPR125 09 More informationQuantity required : 1 |
||||||
|
9 |
866753 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
865611 - CASQ.SEPAR.IZ.BSCULNT.GPR125 09 More informationQuantity required : 1 |
||||||
|
11 |
FRONT WHEEL WASHER Ø.15 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, RX, SX -00032015000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/1/4/img/64214.jpg)
12 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR -00H00300672- More informationQuantity required : 1 |
||||||
|
13 |
00H01509181 - COUVRE CHAONES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/9/img/63709.jpg)
14 |
00016041301 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/3/9/img/70139.jpg)
15 |
REAR SHOCK ABSORBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO 2011> -8656670001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/3/0/img/64230.jpg)
16 |
00H00303892 - BOULON TETE HEX. M12 175X58 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/9/img/63609.jpg)
17 |
00001213190 - DOUILLE DE BUTEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/6/img/63716.jpg)
18 |
NUT - SAFETY NUT FOR SUPENSION ARM (12X175) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00023112000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/2/6/img/64226.jpg)
19 |
00H00302892 - BOULON TETE HEX. M12 175X50 More informationQuantity required : 1 |
||||||
|
20 |
00001213190 - DOUILLE DE BUTEE More informationQuantity required : 1 |
||||||
|
21 |
00002084514 - TORN.C/ALL.8M125X45 DIN912 12.9 DAC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/1/img/69481.jpg)
22 |
WATER PUMP WASHER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, RS -847183- More informationQuantity required : 1 |
||||||
|
23 |
|
||||||
|
24 |
863018 - CASQ.RODILLO CADENA GPR 125 ¦06 More informationQuantity required : 1 |
||||||
|
25 |
863017 - RODILLO CADENA GPR 125CC ¦06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/8/img/63888.jpg)
26 |
00D02500271 - RONDELLE FIX.MOTEUR (125)D8,4X More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/7/img/63767.jpg)
27 |
00262080022 - ECROU More informationQuantity required : 1 |
