Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

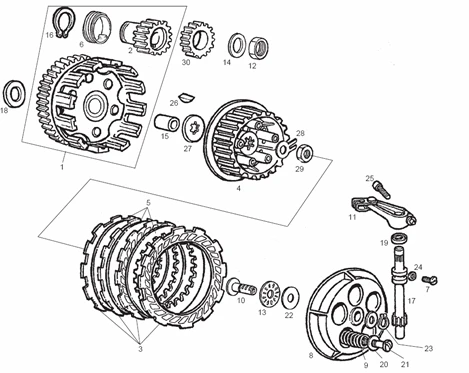

Tables : 16 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1119/GPR_REPLICA_2001_EXPORT_MARKET_16.png)
1 |
00H03605521 - CLOCHE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
2 |
00H02610381 - PIGNON MOTEUR Z-22. 74/80CC. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/7/img/69427.jpg)
3 |
DRIVEN CLUTCH DISC "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/8/img/69428.jpg)
4 |
CLUTCH PRESSURE PLATE"PIAGGIO GENUINE PART" 50 GILERA SMT, RCR 2006>/APRILIA 50 RS 2006>, SX, RX -847045- More informationQuantity required : 1 |
||||||
|
5 |
00H02600151 - DISQUE EMBRAYAGE LISSE More informationQuantity required : 1 |
||||||
|
6 |
00H01600111 - VIS COMMANDE COMPTE-TOURS 50/7 More informationQuantity required : 1 |
||||||
|
7 |
00H02600341 - VIS More informationQuantity required : 1 |
||||||
|
8 |
00H02600181 - PLATEAU EXTERIEUR D,EMBRAYA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/3/0/img/69430.jpg)
9 |
CLUTCH PLATE SPRING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847047- More informationQuantity required : 1 |
||||||
|
10 |
00H02600271 - CREMAILLETE D,EMBRAYAGE More informationQuantity required : 1 |
||||||
|
11 |
00H02600321 - VIS HELICOIDALE AVEC LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/1/7/img/64717.jpg)
12 |
NUT -FOR CRANKSHAFT PINION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2003 -00H02600401- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/3/img/69493.jpg)
13 |
CLUTCH PLATE BEARING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847222 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/1/5/img/69515.jpg)
14 |
BALANCE SHAFT WASHER "PIAGGIO GENUINE PART" APRILIA 50 RS 2006> -847276- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/6/5/img/66965.jpg)
15 |
CLUTCH DRUM "PIAGGIO GENUINE PART" GILERA 50 SMT 2006>, RCR 2006>/APRILIA 50 SX 2006>, RX 2006>, RS 2006>/DERBI 50 SENDA 2006> (NEEDS PINION FOR EURO 2 MODEL) -497643- More informationQuantity required : 1 |
||||||
|
16 |
|
||||||
|
17 |
00H02610311 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/1/img/69491.jpg)
18 |
CLUTCH WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX, RS -847218- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/4/9/img/69449.jpg)
19 |
GASKET RING- CLUTCH CONTRAL AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
20 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
|
21 |
00012053500 - VIS 5M80X35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/5/img/69495.jpg)
22 |
WASHER FOR CLUTCH PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847224- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/2/img/63602.jpg)
23 |
CIRCLIP FOR CLUTCH CONTROL "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00000047110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/8/img/64838.jpg)
24 |
00H03800441 - RONDELLE More informationQuantity required : 1 |
||||||
|
25 |
|
||||||
|
26 |
00H02600491 - CLAVETTE PIGNON MOT. D-6888. 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/5/6/9/img/187569.jpg)
27 |
00D02600552 - RONDELLE ETOILEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/8/img/70608.jpg)
28 |
CLUTCH LOCKING WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/DERBI 50 SENDA, GPR -876418 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/2/img/69492.jpg)
29 |
NUT - FOR CLUTCH NUT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006> -847221- More informationQuantity required : 1 |
||||||
|
30 |
00H03800181 - PIGNON More informationQuantity required : 1 |
