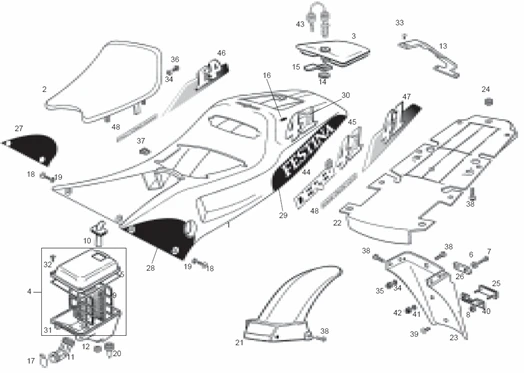

Vehicle Exploded View - DERBI GPR 50 GPR REPLICA 2001 EXPORT MARKET

	P2R reference	193649
	Maker reference	00H04904091C

00H04904091C - R-SCTO. COLIN DERBI REP FRANCI

	P2R reference	193650
	Maker reference	00H04908091C

00H04908091C - SCTO. COLIN SILLIN REPL 00 RP

	P2R reference	193562
	Maker reference	00H00604011

00H00604011 - ENSEMBLE SELLE GPR-50"R"

	P2R reference	193265
	Maker reference	00H00600661

00H00600661 - SELLA C/SERRATURA GPR

	P2R reference	193266
	Maker reference	00H00500721

00H00500721 - CTO.CAJA FILTRO C/TUBO GPR AUS

	P2R reference	193267
	Maker reference	00H00501721

00H00501721 - CTO.CAJA FILTRO C/TUBO GPR 50R

	P2R reference	64260
	Maker reference	00H00501901

00H00501901 - JOINT COUVERCLE BO?TE FILTRE G

	P2R reference	69496
	Maker reference	847226

WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226-

	P2R reference	63702
	Maker reference	000121515005

00012151500 - VIS A TETE RONDE A FENTES C

	P2R reference	69844
	Maker reference	861239

WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239-

	P2R reference	64759
	Maker reference	00H03202251

00H03202251 - MOUSSE FILTRE AIR GPR-50"R"

	P2R reference	64760
	Maker reference	00H03202491

00H03202491 - TUBE ASPIRATION BOITE FILTRE G

	P2R reference	64763
	Maker reference	00H03204261

AIR FILTER INTAKE PIPE "PIAGGIO GENUINE PART" GILERA 50 GPR -00H03204261

	P2R reference	63673
	Maker reference	000089150205

SILENT-BLOC FOR RADIATOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>2018/APRILIA 50 RS 2006>2018, SX, RX 2006>2018 - 00008915020-

	P2R reference	64279
	Maker reference	00H00601921

00H00601921 - ENJOLIVEUR SUPFRIEUR FIN DE SE

	P2R reference	64280
	Maker reference	00H00601931

00H00601931 - RONDELLE SERRURE SELLE GPR-50

	P2R reference	64281
	Maker reference	00H00603141

00H00603141 - LEVIER FERMETURE SELLE GPR-50R

	P2R reference	193269
	Maker reference	00H05900501

00H05900501 - BOUCHON ORIFICE ALLONGE EXTREME

	P2R reference	64080
	Maker reference	00G03204272

CLAMP FOR AIRBOX JUNCTION "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00G03204272-

	P2R reference	65039
	Maker reference	00H06301861

SCREW - FOR FAIRINGS FASTENING 6X18 "PIAGGIO GENUINE PART" GILERA 50 GPR -00H06301861

	P2R reference	71410
	Maker reference	AP8120622

FRONT DUST COVER RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8120622-

	P2R reference	193301
	Maker reference	00H00501581

00H00501581 - TUBE RESPIRATION BO´TE FILTRE

	P2R reference	193274
	Maker reference	00H00703121

00H00703121 - GARDE-BOUE ARRI¤RE GPR-50"R"

	P2R reference	193275
	Maker reference	00H00703381

00H00703381 - SUPPLOMENT ANTORIEUR GARDE-BOU

	P2R reference	193276
	Maker reference	00H00710341

00H00710341 - SUPL. GARDE BOUE AR.

	P2R reference	64530
	Maker reference	00H01501031

00H01501031 - PASSE-C?BLES GARDE-BOUE ARRI¤R

	P2R reference	188282
	Maker reference	00H04400751

00H04400751 - CATADIOPTRE ARRIERE

	P2R reference	193651
	Maker reference	00H00604481

00H00604481 - CALCA LAT.IZ.COLIN

	P2R reference	193652
	Maker reference	00H00605471

00H00605471 - CALCA LAT.DR.COLIN

	P2R reference	193653
	Maker reference	00H00605521

00H00605521 - CALCA LAT.COLIN FESTINA

	P2R reference	193654
	Maker reference	00H01515321

00H01515321 - CALCA NUMERO 41

	P2R reference	193297
	Maker reference	00H00500131

00H00500131 - ECROU FIXATION COUVERCLE FILTRE

	P2R reference	63704
	Maker reference	000121616005

SCREW - (M6X1000X16) AIR FILTER FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, -00012161600-

	P2R reference	193298
	Maker reference	00H06100171

00H06100171 - VIS FIXATION ENJOLIVEUR EXTROM

	P2R reference	63876
	Maker reference	00D01200171

WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171-

	P2R reference	63590
	Maker reference	000000230605

NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060-

	P2R reference	63696
	Maker reference	000120612005

00012061200 - VIS A TETE RONDE A FENTES C

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	65033
	Maker reference	00H06300861

SCREW - FOR FAIRINGS FASTENING 6X14 "PIAGGIO GENUINE PART" GILERA 50 GPR -00H06300861

	P2R reference	193299
	Maker reference	00H04601421

00H04601421 - SUPPORT ROFLECTEURS GPR-50"R"

	P2R reference	69480
	Maker reference	847181

MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181

	P2R reference	64277
	Maker reference	00H00600681

LOCKS FOR REAR BOOT "PIAGGIO GENUINE PART" GILERA 50 GPR -00H00600681

	P2R reference	193655
	Maker reference	00H00607471

00H00607471 - CALCA DERBI COLIN REPL 00 RP

	P2R reference	193654
	Maker reference	00H01515321

00H01515321 - CALCA NUMERO 41

	P2R reference	193656
	Maker reference	00H04415821

00H04415821 - CALCA WWW.DERBI.COM

	P2R reference	193657
	Maker reference	00H00616601

00H00616601 - CALCA POST.DR.COLIN SILL.REP01

	P2R reference	193658
	Maker reference	00H00616611

00H00616611 - CALCA POST.IZ.COLIN SILL.REP01
