Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

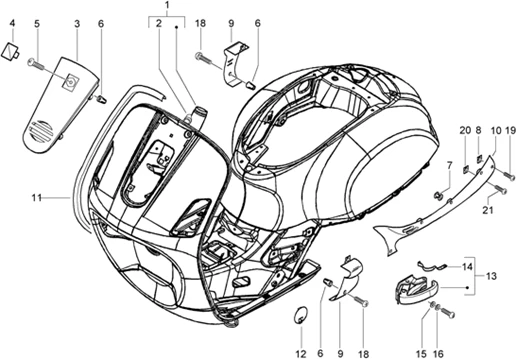

Châssis : T22 COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/724/Granturismo_125_L_1998-2005_T22.PNG)
1 |
1B0008635 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
1 |
FRAME "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLACK 94 -6229145090- More informationQuantity required : 1 |
|||||||||
|
1 |
Chássis VESPA GTS BLEU IMPERIAL 204/A |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
|||||||||
|
3 |
CACHE DIRECTION |
|||||||||
|
3 |
CACHE DIRECTION |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BLACK 94 -5774275090- More informationQuantity required : 1 |
|||||||||
|
3 |
57742760A7 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BEIGE CAMEO 524 -57742750BG- More informationQuantity required : 1 |
|||||||||
|
3 |
57742760D8 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
3 |
57742750D9 - CACHE DIRECTION VESPA GT BLEU IMPER 204 More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREY 731 -57742750EB- More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREY 728 -57742750F2- More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREEN 382 -57742760VC- More informationQuantity required : 1 |
|||||||||
|
3 |
STEERING COVER- FRONT "PIAGGIO GENUINE PART" VESPA 125 GT WHITE 525 -57742750BM- More informationQuantity required : 1 |
|||||||||
|
3 |
57742760ND - COVERTURE DIRECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/9/img/67129.jpg)
4 |
DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
5 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
6 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
7 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
|
9 |
SPOILER LEFT TERMINAL "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RAW TO BE PAINTED -1B000591- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/1/1/img/153211.jpg)
9 |
1B000591 - EMBOUT SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
9 |
1B00059100090 - EMBOUT SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
9 |
LEFT SPOILER TERMINAL "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO PLATINE 686 -57747300A7- More informationQuantity required : 1 |
|||||||||
|
9 |
57747300BG - EMBOUT SPOILER More informationQuantity required : 1 |
|||||||||
|
9 |
SPOILER LEFT TERMINAL "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RAW TO BE PAINTED -1B000591- More informationQuantity required : 1 |
|||||||||
|
9 |
1B000591 - EMBOUT SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
9 |
57747300D9 - EMBOUT SPOILER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/6/5/img/81265.jpg)
9 |
LEFT SPOILER- "PIAGGIO GENUINE PART" VESPA 125 GTRANTURISMO GRIS 731 -57747300EB More informationQuantity required : 1 |
|||||||||
|
9 |
57747300F2 - EMBOUT SPOILER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/8/0/img/81280.jpg)
9 |
SPOILER LEFT TERMINAL "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BLACK 79/A -57747300ND- More informationQuantity required : 1 |
|||||||||
|
9 |
57747300VC - EMBOUT SPOILER GAU. GT 382 VINTAGE VERT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/6/1/img/140061.jpg)
9 |
SPOILER RIGHT TERMINAL "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RAW TO BE PAINT -1B003904 More informationQuantity required : 1 |
|||||||||
|
9 |
1B00390400090 - EMBOUT SPOILER DR. More informationQuantity required : 1 |
|||||||||
|
9 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" 125 VESPA GRANTURISMO PLATINE 686 -57747400A7- More informationQuantity required : 1 |
|||||||||
|
9 |
57747400BM - EMBOUT SPOILER More informationQuantity required : 1 |
|||||||||
|
9 |
57747400D9 - EMBOUT SPOILER DR VESPAGT BLEU IMPERIALE More informationQuantity required : 1 |
|||||||||
|
9 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREEN 382 -57747400VC- VESPA 125 GRANTURISMO GREEN 382 -57747400VC- More informationQuantity required : 1 |
|||||||||
|
9 |
1B000591 - EMBOUT SPOILER GAU. More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO RAW TO BE PAINTED -577393- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 GT BLACK 94 -5773930090- More informationQuantity required : 1 |
|||||||||
|
10 |
57739300A7 - FLANC GAUCHE GT 686 PLATINE More informationQuantity required : 1 |
|||||||||
|
10 |
57739300BM - FLANC GAUCHE More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BLUE 202 -57739300D8- More informationQuantity required : 1 |
|||||||||
|
10 |
57739300D9 - FLANC GAUCHE More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREY 731 -57739300EB- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/9/8/img/81198.jpg)
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 GT GREY 738/A -57739300F2- More informationQuantity required : 1 |
|||||||||
|
10 |
57739300ND - FLANC GAUCHE More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO GREEN 382 -57739300VC- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO ALABASTER 208 -5773940018- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 GT BLACK 94 -5773940090- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR LEFT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO PLATINIUM 686 -57739400A7 - More informationQuantity required : 1 |
|||||||||
|
10 |
57739400BG - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
10 |
57739400BM - CARENAGE DROIT More informationQuantity required : 1 |
|||||||||
|
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BLAU 202 -57739400D8- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GRANTURISMO BLUE 211/A -57739400D9- More informationQuantity required : 1 |
|||||||||
|
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART"VESPA 125 GRANTURISMO GREY 731 -57739400EB- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/1/3/img/81213.jpg)
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125 GT GREY 738/A -57739400F2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/1/5/img/81215.jpg)
10 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" VESPA 125 GT BLACK 79/A -57739400ND- More informationQuantity required : 1 |
|||||||||
|
10 |
57739400VC - FLANC DROIT GT 382 VERT VINTAGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/7/img/81127.jpg)
11 |
FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577180 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/8/img/81128.jpg)
11 |
FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/2/2/3/img/81223.jpg)
12 |
577405000C - BOUCHON SPOILER More informationQuantity required : 2 |
|||||||||
|
12 |
5774050043 - BOUCHON SPOILER More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/7/img/80207.jpg)
13 |
LEFT FOOTREST "PIAGGIO GENUINE PART" VESPA 125-250-300 GTS -57326R- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/0/8/img/80208.jpg)
13 |
57327R - REPOSE-PIED DROIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/6/1/2/img/83612.jpg)
14 |
620395 - RESSORT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
15 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
16 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/6/5/img/78065.jpg)
17 |
299557 - BOUCHON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
18 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
19 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830- More informationQuantity required : 2 |
|||||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/7/9/7/img/73797.jpg)
21 |
SCREW - (4,2X25) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -014754- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
21 |
267115 - VIS More informationQuantity required : 2 |
|||||||||
