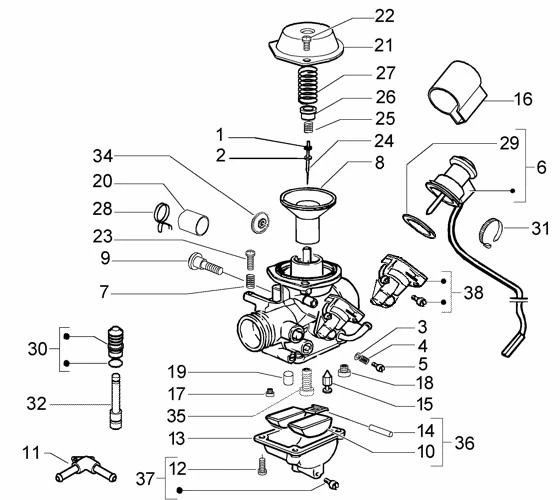

Vehicle Exploded View - VESPA VESPA GT 125 Granturismo 125 L 1998-2005

	P2R reference	68621
	Maker reference	826822

826822 - CIRCLIPS

	P2R reference	68620
	Maker reference	826821

826821 - RONDELLE

	P2R reference	68627
	Maker reference	826843

826843 - RONDELLE

	P2R reference	73168
	Maker reference	CM140208

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" 125 MP3, X-EVO, X9, X8, VESPA GTS -CM140208-

	P2R reference	68626
	Maker reference	826839

826839 - RESSORT

	P2R reference	73095
	Maker reference	CM106402

CARB AIR SCREW "PIAGGIO GENUINE PARTS" COMMUN A LA GAMME 125 CC 1998>2004 -CM106402-

	P2R reference	73152
	Maker reference	CM129802

CM129802 - DISPOSITIF WALBRO

	P2R reference	73209
	Maker reference	CM142913

CHOKE "PIAGGIO GENUINE PART" 125 MP3, VESPA GTS, X-EVO 2007>, FLY, VESPA LX 2005>, X9 2003>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM142913-

	P2R reference	68623
	Maker reference	826825

826825 - RESSORT

	P2R reference	73150
	Maker reference	CM129701

SLIDE FOR WALBRO CARB "PIAGGIO GENUINE PART" 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701-

	P2R reference	73172
	Maker reference	CM140301

SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X-EVO 2007>, X9 2003>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005>/APRILIA 125 ATLANTIC 2003> ALUMINIUM WITH FLAT SPOT FOR KEIHIN CARB -CM140301

	P2R reference	68624
	Maker reference	826826

826826 - VIS

	P2R reference	73156
	Maker reference	CM129912

MAIN JET Ø 105 MAXIMUM "PIAGGIO GENUINE PART" 125 X8, X9, X-EVO, VESPA GTS/APRILIA 125 ATLANTIC, SCARABEO -CM129912

	P2R reference	68618
	Maker reference	826812

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 -826812-

	P2R reference	68773
	Maker reference	828742

828742 - RECHAFFEUR

	P2R reference	69237
	Maker reference	842516

842516 - KIT RECHAUFFEUR

	P2R reference	68613
	Maker reference	826770

826770 - VIS

	P2R reference	69242
	Maker reference	842523

CARB FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 125-250 CC -842523-

	P2R reference
	Maker reference	CM109809

CUVETTE

	P2R reference
	Maker reference	826811

Goupille

	P2R reference	68616
	Maker reference	826786

826786 - POINTEAU ESSENCE

	P2R reference	73248
	Maker reference	CM147102

CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102-

	P2R reference	68628
	Maker reference	826866

826866 - COUVERCLE

	P2R reference	68789
	Maker reference	828844

CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844-

	P2R reference	73082
	Maker reference	CM105302

CM105302 - GICLEUR

	P2R reference	73161
	Maker reference	CM140103

IDLE JET "PIAGGIO GENUINE PART" (38) PIAGGIO 125 X-EVO, X8, VESPA GTS, X9, MP3 -CM140103-

	P2R reference	95921
	Maker reference	CM105412

CM105412 - GICLEUR

	P2R reference	73154
	Maker reference	CM129905

CM129905 - GICLEUR MAXI 98

	P2R reference
	Maker reference	826768

Cache

	P2R reference	69200
	Maker reference	841695

AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695

	P2R reference	68674
	Maker reference	827467

GAS VALVE COVER "PIAGGIO GENUINE PART" 8769925 125 CC 1998>2005 -827467-

	P2R reference	70668
	Maker reference	877764

GAS VALVE COVER "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125-250 CC -877764-

	P2R reference	68614
	Maker reference	826780

SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780-

	P2R reference	68622
	Maker reference	826824

826824 - VIS

	P2R reference	95923
	Maker reference	CM106507

NEEDLE FOR CARB "PIAGGIO GENUINE PART" 125 X8, 125 VESPA GT -CM106507-

	P2R reference	96035
	Maker reference	CM140202

CM140202 - POINTEAU CON.

	P2R reference
	Maker reference	826818

Ressort

	P2R reference
	Maker reference	826820

Rondelle d'ar

	P2R reference	69238
	Maker reference	842518

NEEDLE CIRCLIP FOR CARB CVEK "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125 CC -842518-

	P2R reference
	Maker reference	CM107903

RESSORT

	P2R reference	73177
	Maker reference	CM140902

RETURN SPRING FOR CARB SLIDE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -CM140902-

	P2R reference	72897
	Maker reference	CM002916

CM002916 - SERRE CABLE (15MM)

	P2R reference	68788
	Maker reference	828843

828843 - PLAQUETTE

	P2R reference
	Maker reference	840453

SET MANCHON CARBURATEUR

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference
	Maker reference	CM109712

TIGE

	P2R reference
	Maker reference	CM119202

MEMBRANE DISPOSIT.

	P2R reference	73238
	Maker reference	CM144602

CM144602 - GIGLEUR MAX

	P2R reference	69241
	Maker reference	842522

CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250 CC -842522-

	P2R reference	69242
	Maker reference	842523

CARB FLOAT CHAMBER GASKET "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS 125-250 CC -842523-

	P2R reference	69239
	Maker reference	842519

842519 - KIT CORPS STARTER
