Vehicle Exploded View - GILERA GSM 50 MY 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

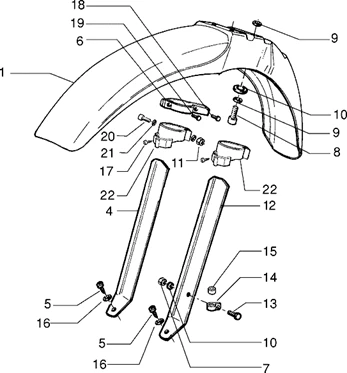

Châssis : T25 GARDEBOUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T25.PNG)
1 |
GARDE BOUE AV GSM |
||||||
|
4 |
FRONT MUDGUARD PROTECTION "PIAGGIO GENUINE PART" GILERA 50 GSM -813893- More informationQuantity required : 1 |
||||||
|
5 |
VIS |
||||||
|
6 |
GUIDE TRANSMISSION |
||||||
|
7 |
810511 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
8 |
031091 - VIS More informationQuantity required : 2 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
10 |
012533 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
11 |
012112 - ECROU S01211200 More informationQuantity required : 4 |
||||||
|
12 |
PROTECT GB AVG GSM |
||||||
|
13 |
809903 - VIS More informationQuantity required : 1 |
||||||
|
14 |
COLLIER |
||||||
|
15 |
216984 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
16 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
17 |
008265 - VIS More informationQuantity required : 2 |
||||||
|
18 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/5/img/63855.jpg)
19 |
008455 - VIS More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
|
22 |
497346 - SEGMENT POUR PROTECTION FOURCHE More informationQuantity required : 2 |
