Vehicle Exploded View - GILERA GSM 50 MY 2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

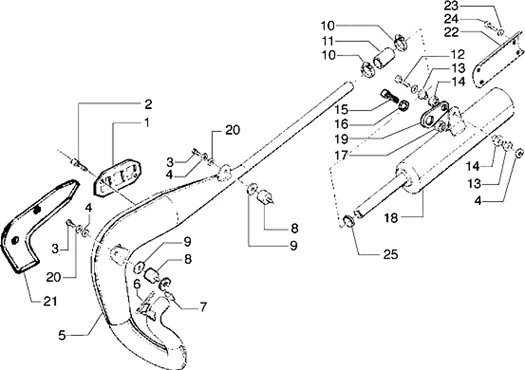

Moteur : T13 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/669/GSM_MY_2001_T13.PNG)
1 |
PROTECTION ECHPT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
2 |
433800 - BOULON More informationQuantity required : 2 |
||||||
|
3 |
598920 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
4 |
003058 - RONDELLE S00305800 More informationQuantity required : 3 |
||||||
|
5 |
814330 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
6 |
811135 - RESSORT More informationQuantity required : 2 |
||||||
|
7 |
JOINT |
||||||
|
8 |
809340 - SILENBLOC More informationQuantity required : 2 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
COLLIER |
||||||
|
11 |
MANCHON |
||||||
|
12 |
030074 - BOULON S03007400 More informationQuantity required : 1 |
||||||
|
13 |
ENTRETOISE |
||||||
|
14 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
15 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
16 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
17 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 1 |
||||||
|
18 |
814330 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
18 |
814331 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/4/7/img/92447.jpg)
18 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, ZULU -814334- More informationQuantity required : 1 |
||||||
|
19 |
SUPPORT TOLE |
||||||
|
20 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 4 |
||||||
|
21 |
PROTECTION |
||||||
|
22 |
PROTECTION |
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
814417 - JOINT More informationQuantity required : 1 |
