Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

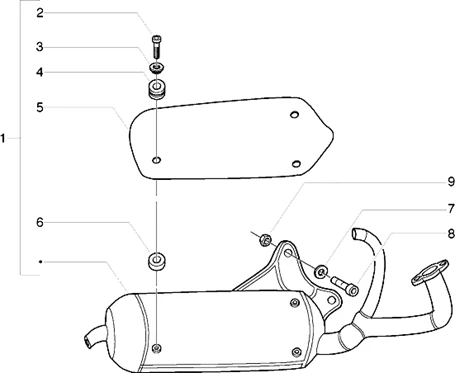

Moteur : T17 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/1/8/4/img/93184.jpg)
1 |
EXHAUST "PIAGGIO GENUINE PART" GILERA 50 STALKER 2000>2011 (CATALYSED) -8739965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/8/img/68948.jpg)
2 |
831153 - VIS M5X12 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
3 |
EXHAUST PROTECTION WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -826118 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/7/9/img/66779.jpg)
4 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC ET MAXISCOOT 125-250-300 -488045 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/9/img/68909.jpg)
5 |
EXHAUST PROTECTION - "PIAGGIO GENUINE PART" 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR -830325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
6 |
SPACER- FOR SILENCER PROTECTION "PIAGGIO GENUINE PART" APRILIA SRV 850 201>2014, SR 50 2018/ GILERA DNA, RUNNER, STALKER, GP 800/ PIAGGIO FLY, NRG, TYPHOON, ZIP -826117 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
8 |
SCREW - FOR EXHAUST 75X8 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -845591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
9 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
