Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

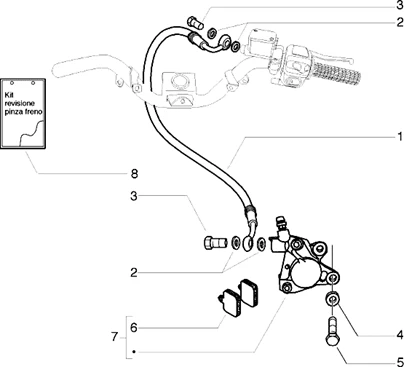

Suspensions-roues : T37 ETRIER DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T37.PNG)
0 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
0 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
1 |
597214 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
2 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
3 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/3/2/img/67332.jpg)
5 |
SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/2/img/68012.jpg)
6 |
BRAKE PADS - "PIAGGIO GENUINE PART" 50 TYPHOON FRONT, NRG FRONT/GILERA 50 RUNNER FRONT, STALKER FRONT (PAIR) -647172 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/2/3/img/82923.jpg)
7 |
FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50 NRG POWER 2006>, TYPHOON 2006>2009, 125 TYPHOON 1196>2003/GILERA 50 STALKER, RUNNER -600734 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/3/1/img/79631.jpg)
8 |
MAINTENANCE KIT FOR BRAKE CALIPER -498442 More informationQuantity required : 1 |
