Vehicle Exploded View - APRILIA LEONARDO 150 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

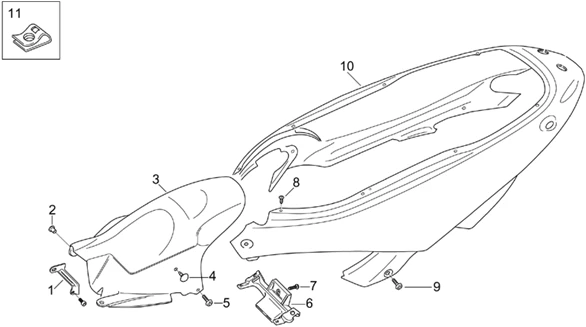

Chassis : 28.17 CARROSSERIE ARRIÉRE - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/248/Leonardo_150_1999-2001_28.17.PNG)
1 |
AP8134362 - SUPPORT GARDE-BOUE AR.NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
2 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
3 |
AP8126977 - GARDE-BOUE ARRIERE GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
4 |
AP8120001 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
6 |
AP8138718 - SUPPORT QUEUE DE CARENAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
7 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
||||||
|
10 |
Queue car. p.noir s.; |
||||||
|
10 |
Queue car. p.bleu m.; |
||||||
|
10 |
Queue, rouge m.; |
||||||
|
10 |
Queue car.p.jaune b.; |
||||||
|
10 |
AP8148377 - QUEUE, GRIS P.; More informationQuantity required : 1 |
||||||
|
10 |
Queue carén. p.b.c.; |
||||||
|
10 |
AP8148898 - Q.CAREN. JAUNE; More informationQuantity required : 1 |
||||||
|
10 |
Queue carén. p.i.g.; |
||||||
|
10 |
Queue, hot red+déc.; |
||||||
|
10 |
AP8149740 - QUEUE, GRIS P.; More informationQuantity required : 1 |
||||||
|
10 |
Queue carén. p.b.c.; |
||||||
|
10 |
Queue, bleu; |
||||||
|
10 |
Queue, noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
