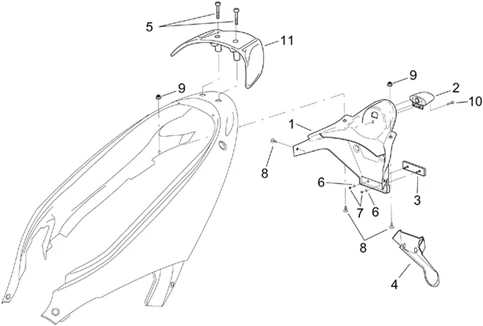

Vehicle Exploded View - APRILIA LEONARDO 150 1999-2001 APRILIA

Chassis : 28.18 CARROSSERIE ARRIÉRE - PORTE-PLAQUE
Carrosserie arriére - Porte-plaque
Search
AP8168665 - PORTE-PLAQUE GRIS;

1
P2R reference P2R reference 53307
Maker reference Maker reference AP8168665

AP8168665 - PORTE-PLAQUE GRIS;

More information

Quantity required : 1

Porte-plaque gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8149611

Porte-plaque gris;

AP8124367 - FEU DE PLAQUE;

2
P2R reference P2R reference 47475
Maker reference Maker reference AP8124367

AP8124367 - FEU DE PLAQUE;

More information

Quantity required : 1

AP8112916 - CATADIOPTRE FEU ARRIERE

3
P2R reference P2R reference 45896
Maker reference Maker reference AP8112916

AP8112916 - CATADIOPTRE FEU ARRIERE

More information

Quantity required : 1

AP8126713 - JUPE ANTI-ECL.AR GR.;

4
P2R reference P2R reference 47875
Maker reference Maker reference AP8126713

AP8126713 - JUPE ANTI-ECL.AR GR.;

More information

Quantity required : 1

AP8126885 - JUPE ANTI-ECL.AR GR.;

4
P2R reference P2R reference 47917
Maker reference Maker reference AP8126885

AP8126885 - JUPE ANTI-ECL.AR GR.;

More information

Quantity required : 1

SCREW - (8x40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

5
P2R reference P2R reference 65747
Maker reference Maker reference 149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

More information

Quantity required : 2

AP8150011 - RONDELLE

6
P2R reference P2R reference 71804
Maker reference Maker reference AP8150011

AP8150011 - RONDELLE

More information

Quantity required : 2

AP8150204 - ECROU AUTOFR. BAS

7
P2R reference P2R reference 71839
Maker reference Maker reference AP8150204

AP8150204 - ECROU AUTOFR. BAS

More information

Quantity required : 2

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

8
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298-

More information

Quantity required : 6

AP8152306 - ECROU AUTOBLOQU.

9
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

AP8152306 - ECROU AUTOBLOQU.

More information

Quantity required : 6

AP8150460 - VIS TARAUD

10
P2R reference P2R reference 97086
Maker reference Maker reference AP8150460

AP8150460 - VIS TARAUD

More information

Quantity required : 1

Poig. pass.p.gris p.;

11
P2R reference P2R reference
Maker reference Maker reference AP8139650

Poig. pass.p.gris p.;

Poig. pass.p.noir s.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148094

Poig. pass.p.noir s.;

Poig. pass.p.bleu m.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148119

Poig. pass.p.bleu m.;

Pg. pass.p.rouge m.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148312

Pg. pass.p.rouge m.;

Poig. pass.p.jaune b.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148367

Poig. pass.p.jaune b.;

Poignée pass.p.b.c.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148881

Poignée pass.p.b.c.;

Poignée pass.p.j.s.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148895

Poignée pass.p.j.s.;

Poignée pass.p.i.g.;

11
P2R reference P2R reference
Maker reference Maker reference AP8148992

Poignée pass.p.i.g.;

Poignée passager peinte gris;

11
P2R reference P2R reference
Maker reference Maker reference AP8149340

Poignée passager peinte gris;

Poignée passager peinte gris;

11
P2R reference P2R reference
Maker reference Maker reference AP8149625

Poignée passager peinte gris;
