Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

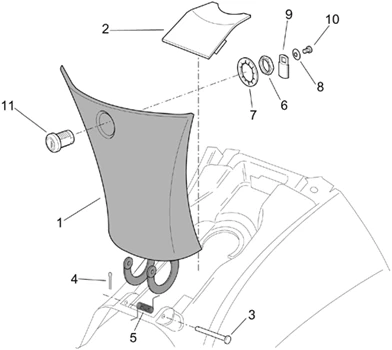

Chassis : 28.14 CARROSSERIE CENTRALE - TUNNEL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/251/Leonardo_250_(eng.Yamaha)_99-01_28.14.PNG)
1 |
Couvercle tunnel, gris; |
||||||
|
1 |
Couv.tunnel Bl.; |
||||||
|
1 |
Couvercle tunnel vert; |
||||||
|
1 |
AP8149630 - COUVERCLE TUNNEL, GRIS; More informationQuantity required : 1 |
||||||
|
2 |
Couvercle sonde ess.gris; |
||||||
|
2 |
Couvercle sonde ess.bleu; |
||||||
|
2 |
Couvercle sonde ess.vert; |
||||||
|
2 |
AP8149636 - COUVERCLE SONDE ESS.GRIS; More informationQuantity required : 1 |
||||||
|
3 |
AP8121985 - PIVOT ABATTANT ESSENCE; More informationQuantity required : 1 |
||||||
|
4 |
AP8101928 - GOUPILLE More informationQuantity required : 1 |
||||||
|
5 |
AP8121497 - RESSORT ABATTANT ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
6 |
AP8152194 - ECROU BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
7 |
AP8221312 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
8 |
STAR WASHER (FOR LOCKS) "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250-500 2003>2012, RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/7/5/img/55375.jpg)
9 |
FUEL TRAPDOOR LEVER "PIAGGIO GENUINE PART" APRILIA ATLANTIC, CAPONORD, 50 RALLY, 50-125 RS, RX, SX -AP8201620 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
10 |
AP8201749 - VIS More informationQuantity required : 1 |
||||||
|
11 |
LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609- More informationQuantity required : 1 |
