Vehicle Exploded View - APRILIA LEONARDO 250 (eng.Yamaha) 99-01
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

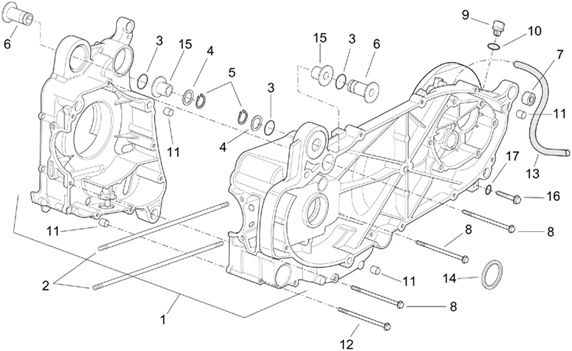

Moteur : 29.40 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/251/Leonardo_250_(eng.Yamaha)_99-01_29.40.PNG)
1 |
Carter moteur; |
||||||
|
2 |
AP8122424 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
|
3 |
AP8144270 - JOINT TORIQUE; More informationQuantity required : 4 |
||||||
|
4 |
Rondelle; |
||||||
|
5 |
Bague seeger |
||||||
|
6 |
AP8122454 - ENTRETOISE; More informationQuantity required : 2 |
||||||
|
7 |
Douille |
||||||
|
8 |
Vis bride; |
||||||
|
9 |
AP8122585 - BOUCHON HUILE More informationQuantity required : 1 |
||||||
|
10 |
Joint torique; |
||||||
|
11 |
Goupille |
||||||
|
12 |
Vis bride; |
||||||
|
13 |
Tuyau; |
||||||
|
14 |
AP8122535 - JOINT SPI; More informationQuantity required : 1 |
||||||
|
15 |
AP8122507 - SUPPORT; More informationQuantity required : 2 |
||||||
|
16 |
Vis bride; |
||||||
|
17 |
AP8122486 - RONDELLE; More informationQuantity required : 1 |
