Vehicle Exploded View - DERBI MINIMOTO 50 MINIMOTO Dirt Boy - Dirt Kid
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

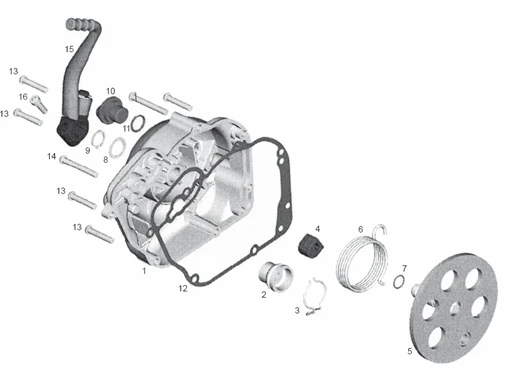

Moteur : 11 LEVIER DÉMARRAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_11.png)
1 |
840539 - K-TAPA More informationQuantity required : 1 |
||||||
|
2 |
289127 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
3 |
KICK STARTER NUT-PINION SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -830212 More informationQuantity required : 1 |
||||||
|
4 |
840302 - K-SILENT-BLOCK More informationQuantity required : 1 |
||||||
|
5 |
840295 - K-EJE ARRANQUE More informationQuantity required : 1 |
||||||
|
6 |
840299 - K-MUELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
7 |
434947 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/3/img/66443.jpg)
8 |
KICK STARTER SHAFT WASHER (16,3X23,8) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -433987- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
9 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/5/img/69325.jpg)
10 |
OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 4 STROKE 2011>/ PIAGGIO 50 TYPHOON, FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, SPRINT, PRIMAVERA, S 4 STROKE 2006> -844721- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
11 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
|
12 |
840303 - K-JUNTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
13 |
597564 - VIS More informationQuantity required : 1 |
||||||
|
14 |
840546 - K-TORNILLO More informationQuantity required : 1 |
||||||
|
15 |
841378 - K-PALANCA DE ARRAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
16 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 1 |
