Vehicle Exploded View - DERBI MINIMOTO 50 MINIMOTO Dirt Boy - Dirt Kid
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

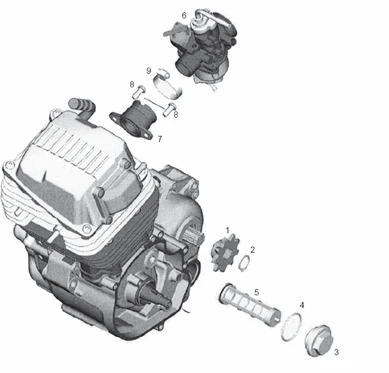

Moteur : 13 FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1114/MINIMOTO_Dirt_Boy_-_Dirt_Kid_13.png)
1 |
840215 - K-PIÐËN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
2 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006416- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/9/5/img/66195.jpg)
3 |
OIL DRAIN CAP "PIAGGIO GENUINE PART" 50 FLY 4STROKE, LIBERTY 4STROKE, VESPA LX 4STROKE, PRIMAVERA 4STROKE, VESPA SPRINT 4STROKE/GILERA 50 STALKER, RUNNER/APRILIA 50 MOJITO, SR H2O, SPORT-CYTY -288548 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/9/img/66149.jpg)
4 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO, X8, X9, 125 FLY, 125-500 X10/GILERA 125-500 NEXUS/APRILIA 125-400-500 ATLANTIC, SCARABEO -285536 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/0/img/66400.jpg)
5 |
OIL FILTER STRAINER "PIAGGIO GENUINE PART" 50 CC 4 STROKE -431242- More informationQuantity required : 1 |
||||||
|
6 |
|
||||||
|
7 |
834773 - K-RAC. ADMISIËN More informationQuantity required : 1 |
||||||
|
8 |
840541 - VIS More informationQuantity required : 1 |
||||||
|
9 |
825865 - CIRCLIPS More informationQuantity required : 1 |
