Vehicle Exploded View - GILERA NEXUS 250 E3 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

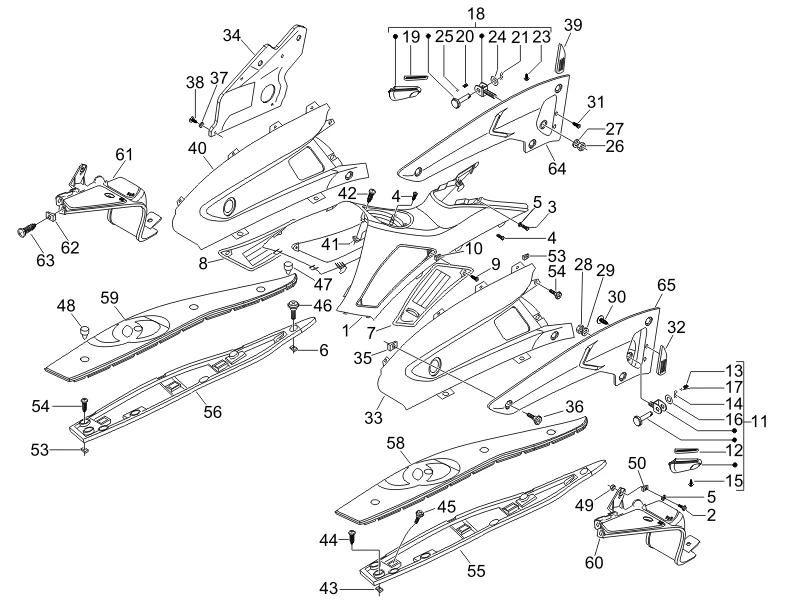

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/181/Nexus_250_E3_2007-109.png)
1 |
975059000G - PROTECTION CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
2 |
015996 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
3 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
265636 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
5 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
7 |
975500000G - GRILLE GAU. More informationQuantity required : 1 |
||||||
|
8 |
975501000G - GRILLE DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
|
11 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
12 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
13 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
14 |
259933 - RESSORT More informationQuantity required : 1 |
||||||
|
15 |
975805 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
16 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
17 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
|
17 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
|
18 |
654132000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
19 |
654132000C - REPOSE PIED More informationQuantity required : 1 |
||||||
|
20 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
|
20 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
|
21 |
259933 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
975805 - VIS More informationQuantity required : 2 |
||||||
|
24 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
25 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
|
25 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/7/img/65477.jpg)
26 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -020210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/2/img/66502.jpg)
27 |
436698 - RESSORT More informationQuantity required : 1 |
||||||
|
28 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -020210 More informationQuantity required : 1 |
||||||
|
29 |
436698 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
30 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
||||||
|
31 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 2 |
||||||
|
32 |
621369 - JOINT PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/0/img/68340.jpg)
33 |
LEFT BODY SIDE "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -656665000G- More informationQuantity required : 1 |
||||||
|
34 |
975850 - COUVERTURE TERM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
35 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/6/3/img/71063.jpg)
36 |
975855 - VIS More informationQuantity required : 6 |
||||||
|
37 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/9/img/63849.jpg)
38 |
008265 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/5/5/img/67655.jpg)
39 |
621370 - JOINT PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/4/1/img/68341.jpg)
40 |
RIGHT BODY SIDE "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -656666000G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
41 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
42 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
45 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
46 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/2/img/67662.jpg)
47 |
621618 - BOUTON More informationQuantity required : 2 |
||||||
|
48 |
FASTENING CLIP FOR FOOTREST "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS -975662- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
49 |
020104 - ECROU S02010400 More informationQuantity required : 2 |
||||||
|
50 |
975826 - PLAQUE POUR REPOSE-PIEDS More informationQuantity required : 2 |
||||||
|
53 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
|
54 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 4 |
||||||
|
55 |
LEFT FOOTREST "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975063000G- More informationQuantity required : 1 |
||||||
|
56 |
RIGHT FOOTREST "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975063000G- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/9/img/68469.jpg)
58 |
LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -673984- More informationQuantity required : 1 |
||||||
|
59 |
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -673985- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/3/6/img/71036.jpg)
60 |
LEFT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX -975502000G- More informationQuantity required : 1 |
||||||
|
61 |
975503000G - REPOSE PIED D More informationQuantity required : 1 |
||||||
|
62 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
63 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 More informationQuantity required : 2 |
||||||
|
64 |
FLANC DR. |
||||||
|
64 |
975496000C - FLANC DR. More informationQuantity required : 1 |
||||||
|
65 |
975495 - FLANC GAU. More informationQuantity required : 1 |
||||||
|
65 |
975495000C - FLANC GAU. More informationQuantity required : 1 |
