Vehicle Exploded View - GILERA NEXUS 250 E3 2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

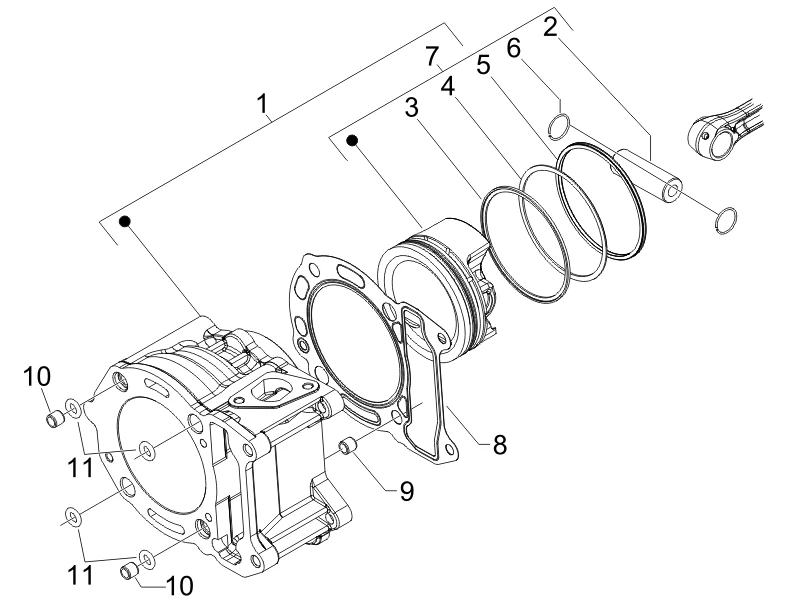

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/181/Nexus_250_E3_2007-034.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/5/img/69285.jpg)
1 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 250 MP3, BEVERLY, X7, X8, X9, X-EVO, GTS/APRILIA 250 ATLANTIC, SPORT-CITY/GILERA 250 NEXUS -843517 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/8/img/66668.jpg)
2 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250 CC -484908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/1/img/68921.jpg)
3 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250 CC -830486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/4/img/66714.jpg)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250 CC -486363 More informationQuantity required : 1 |
||||||
5 |
829529 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/2/img/70922.jpg)
6 |
STOP RING FOR PISTON "PIAGGIO GENUINE PART"- LEADER ENGINE 125-250 -963486 More informationQuantity required : 2 |
||||||
|
7 |
8435190001 - GROUPE PISTON More informationQuantity required : 1 |
||||||
|
7 |
8435190002 - GROUPE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/8/img/69288.jpg)
7 |
8435190003 - GROUPE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/9/img/69289.jpg)
7 |
PISTON CAT D "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 250 CC -8435190004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
8 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
8 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
9 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
10 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/4/img/72764.jpg)
11 |
O'RING GASKET-CYLINDER BASE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250 MAXISCOOTER -B017342 More informationQuantity required : 4 |
