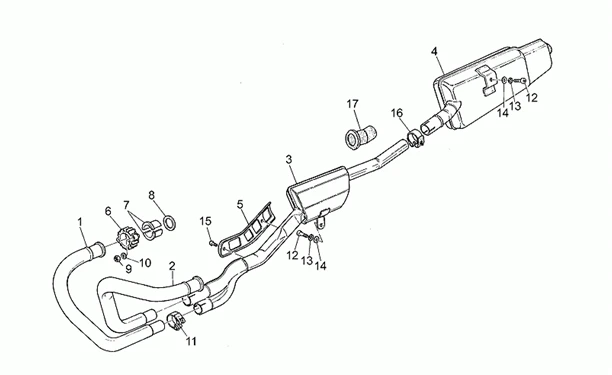

Chassis : 33.30 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_33.30.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU27123915 - CHAMBRE DE DETENDE More informationQuantity required : 1 |
||||||
|
4 |
GU27122915 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
5 |
Protection tuyaux échappement |
||||||
|
6 |
|
||||||
|
7 |
GU61025400 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
8 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280- More informationQuantity required : 2 |
||||||
|
9 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
10 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
11 |
COLLIER |
||||||
|
12 |
GU98822416 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
13 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
14 |
GU95000208 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
GU98290608 - VIS More informationQuantity required : 2 |
||||||
|
16 |
COLLIER |
||||||
|
17 |
GU27126615 - CAOUTCHOUC More informationQuantity required : 1 |
