Vehicle Exploded View - MOTO-GUZZI NTX 350 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

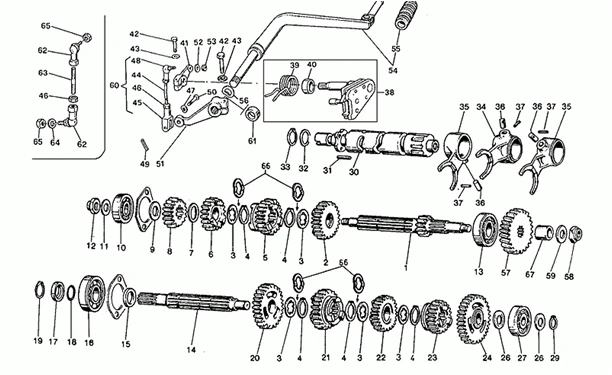

Moteur : 34.24 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_34.24.PNG)
1 |
GU19210520 - ARBRE PRIMAIRE More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
GU19215420 - RONDELLE D APPUI More informationQuantity required : 5 |
||||||
|
4 |
|
||||||
|
5 |
GU19211820 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
6 |
GU19211420 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
GU19211320 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
9 |
GU19212800 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
|
11 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
12 |
GU10054100 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/8/img/132388.jpg)
13 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
15 |
GU19212900 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
16 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
|
17 |
GU19213720 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
18 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188 More informationQuantity required : 1 |
||||||
|
19 |
GU90271121 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
20 |
GU19214501 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
21 |
GU19214820 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
22 |
GU19215121 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
23 |
GU19215220 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
|
26 |
GU35214300 - CALE More informationQuantity required : 2 |
||||||
|
27 |
|
||||||
|
29 |
GU90271115 - JONC D ARRET More informationQuantity required : 1 |
||||||
|
30 |
GU19234420 - ARBRE More informationQuantity required : 1 |
||||||
|
31 |
GU19234600 - TIGE More informationQuantity required : 4 |
||||||
|
32 |
GU19355300 - CALE 1 MM More informationQuantity required : 1 |
||||||
|
33 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
34 |
GU19231220 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
35 |
GU19231020 - FOURCHETTE More informationQuantity required : 2 |
||||||
|
36 |
GU92297909 - ROULEAU More informationQuantity required : 3 |
||||||
|
37 |
GU95520316 - GOUPILLE More informationQuantity required : 3 |
||||||
|
38 |
Kit présélecteur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/6/img/130136.jpg)
39 |
PRIMARY GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI RANGE -GU28238261- More informationQuantity required : 1 |
||||||
|
39 |
|
||||||
|
40 |
GU20208520 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
40 |
GU91182010 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
41 |
GU19258220 - LEVIER COMM.PRESEL. More informationQuantity required : 1 |
||||||
|
42 |
Vis |
||||||
|
43 |
Rondelle évent. |
||||||
|
44 |
GU18257950 - TIRANT More informationQuantity required : 1 |
||||||
|
45 |
|
||||||
|
46 |
|
||||||
|
47 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
|
48 |
GU32258110 - ROTULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
49 |
GU95500222 - GOUPILLE More informationQuantity required : 1 |
||||||
|
50 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
51 |
GU19256920 - LEVIER More informationQuantity required : 1 |
||||||
|
52 |
|
||||||
|
53 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
54 |
PEDALE DE SELECTEUR |
||||||
|
55 |
GU30251025 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
56 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
57 |
|
||||||
|
58 |
GU10054100 - ECROU More informationQuantity required : 1 |
||||||
|
59 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
||||||
|
60 |
|
||||||
|
61 |
|
||||||
|
62 |
GU30257725 - FOURCHETTE CPL. More informationQuantity required : 2 |
||||||
|
63 |
TIGE |
||||||
|
64 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
65 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
66 |
GU19214320 - RONDELLE More informationQuantity required : 4 |
||||||
|
67 |
GU19266720 - DOUILLE More informationQuantity required : 1 |
