Vehicle Exploded View - APRILIA PEGASO 50 1992-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

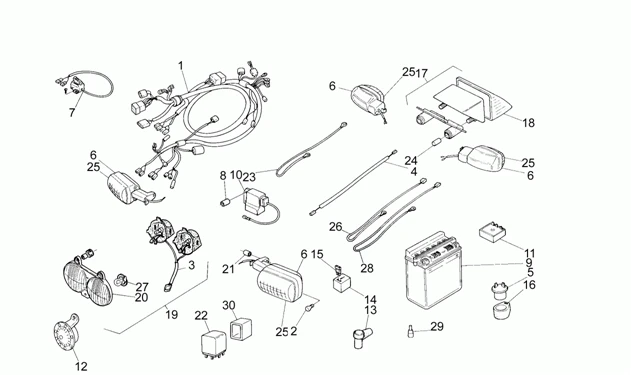

Chassis : 11 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/301/Pegaso_50_1992-1994_11.PNG)
1 |
FAISCEAU PRINCIPAL |
||||||
|
2 |
|
||||||
|
3 |
CABLE FEU AVANT |
||||||
|
4 |
Câblage diodes |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
5 |
FLASHER UNIT "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER + MAXISCOOTER APRILIA + MOTO 125 CC -AP8124235 More informationQuantity required : 1 |
||||||
|
6 |
AP8112687 - INDICATEUR DIRECTION More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/4/img/56334.jpg)
7 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" APRILIA 50 RS, PEGASO, EUROPA, CLASSIC, AF1 -AP8212831- More informationQuantity required : 1 |
||||||
|
8 |
AP8221043 - DOUILLE ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
9 |
234390 - BATTERIE 12V/4 AH YUASA YB4L-B More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/6/8/img/56268.jpg)
10 |
IGNITION COIL "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>2005, CLASSIC 1992>1999, MX 2004> -AP8212474- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/5/img/56235.jpg)
11 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 50 RS 1993>2005, RX 2002>2004, MX 2004>, TUAREG 1990>1992, PEGASO, EUROPA, CLASSIC -AP8212121- More informationQuantity required : 1 |
||||||
|
12 |
AVERTISSEUR |
||||||
|
13 |
Pipe bougie |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/3/7/img/56237.jpg)
14 |
AP8212143 - BLOC FUSIBLES/DIODE More informationQuantity required : 1 |
||||||
|
15 |
CM225607 - FUSIBLE More informationQuantity required : 1 |
||||||
|
16 |
AP8212165 - SUPPORT BUZZER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/9/img/45859.jpg)
17 |
TAILLIGHT- "PIAGGIO GENUINE PART" APRILIA 50-125 RX, SX, MX, 50 PEGASO, TUAREG -AP8112531 More informationQuantity required : 1 |
||||||
|
18 |
AP8112633 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
|
19 |
PHARE AVANT |
||||||
|
20 |
GROUP OPTIQUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
21 |
AP8121795 - DOUILLE EN T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/5/8/img/45858.jpg)
22 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, CLASSIC -AP8112523- More informationQuantity required : 2 |
||||||
|
23 |
AP8112573 - CABLAGE NEGATIF BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/7/img/46927.jpg)
24 |
AP8121718 - DOUILLE More informationQuantity required : 2 |
||||||
|
25 |
AP8112756 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
|
26 |
FAISCEAU DEMARR./RELAI |
||||||
|
27 |
Porte-ampoule |
||||||
|
28 |
FAISCEAU RELAI -BATTERIE |
||||||
|
29 |
AP8120482 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
30 |
Caoutchouc |
