Vehicle Exploded View - APRILIA PEGASO 50 1992-1994
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

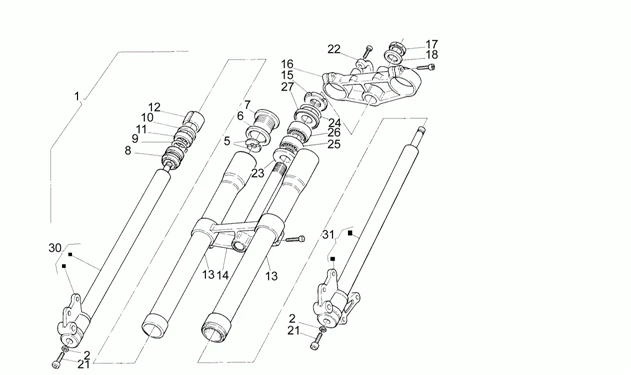

Chassis : 8 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/301/Pegaso_50_1992-1994_8.PNG)
1 |
Fourche complète |
||||||
|
2 |
SEAL WASHER ON FORK DRAIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8123206 More informationQuantity required : 1 |
||||||
|
5 |
DEMI RONDELLE |
||||||
|
6 |
BAGUE |
||||||
|
7 |
AP8123210 - VIS More informationQuantity required : 2 |
||||||
|
8 |
Pare-poussière; |
||||||
|
9 |
AP8203445 - BAGUE DE BUTEE; More informationQuantity required : 2 |
||||||
|
10 |
SCODELLINO FORCELLA |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/2/img/67412.jpg)
11 |
FORK OIL SEAL MARZOCCHI "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, SCARABEO, LEONARDO, 50 RS, SX, RX -600126 More informationQuantity required : 2 |
||||||
|
12 |
AP8203447 - DOUILLE DE COULISSEMENT; More informationQuantity required : 2 |
||||||
|
13 |
Fourreau .; |
||||||
|
14 |
AP8203451 - PLAQUE INF.; More informationQuantity required : 1 |
||||||
|
15 |
AP8203588 - BAGUE INFERIEUR FOURCHE More informationQuantity required : 1 |
||||||
|
16 |
AP8203424 - PLAQUE SUP. FOURCHE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/9/img/72159.jpg)
17 |
AP8203251 - BOUCHON TUBE More informationQuantity required : 1 |
||||||
|
18 |
RONDELLE P.L |
||||||
|
21 |
AP8123216 - VIS More informationQuantity required : 2 |
||||||
|
22 |
AP8203425 - CAVALIER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
23 |
AP8101271 - ANNEAU RACLEUR INF. More informationQuantity required : 2 |
||||||
|
24 |
AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
25 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
26 |
STEERING COLUMN BEARING ( UPPER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110025- More informationQuantity required : 1 |
||||||
|
27 |
AP8120211 - PARE-POUSSIERE More informationQuantity required : 2 |
||||||
|
30 |
AP8203811 - TIGE+PORTE-ROUE D More informationQuantity required : 1 |
||||||
|
31 |
Tige+porte-roue G |
