Vehicle Exploded View - APRILIA PEGASO 650 1992-1996
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

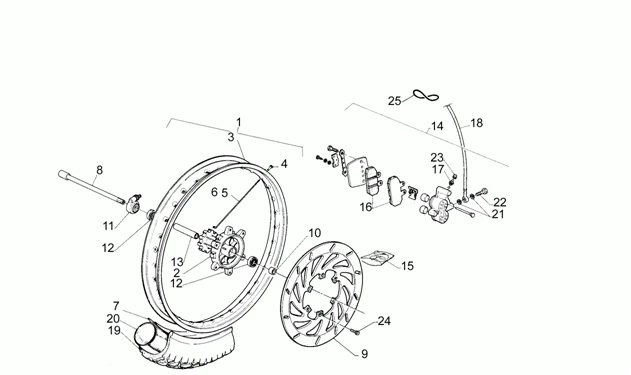

Chassis : 9 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/303/Pegaso_650_1992-1996_9.PNG)
1 |
AP8108781 - ROUE AV=8108576 More informationQuantity required : 1 |
||||||
|
1 |
ROUE AVANT |
||||||
|
2 |
AP8125542 - MOYEU AVANT NU More informationQuantity required : 1 |
||||||
|
3 |
AP8108469 - JANTE More informationQuantity required : 1 |
||||||
|
3 |
JANTE ANNODISEE 19" |
||||||
|
4 |
AP8108672 - NIPPLES More informationQuantity required : 36 |
||||||
|
5 |
AP8108758 - RAYON AVANT DTE More informationQuantity required : 18 |
||||||
|
6 |
AP8108757 - RAYON AVANT GCHE More informationQuantity required : 18 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/0/9/img/45809.jpg)
7 |
AP8109280 - FLAP RUOTA ANTERIORE 19 More informationQuantity required : 1 |
||||||
|
8 |
AXE ROUE AV. |
||||||
|
9 |
AP8113465 - DISQUE FREIN More informationQuantity required : 1 |
||||||
|
9 |
AP8113485 - DISQUE FREIN AVANT INOX More informationQuantity required : 1 |
||||||
|
10 |
ENTRETOISE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/3/7/img/45137.jpg)
11 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" APRILIA 125-650 PEGASO -AP8102176- More informationQuantity required : 1 |
||||||
|
12 |
AP8110045 - ROULEMENT MOYEU More informationQuantity required : 2 |
||||||
|
13 |
Entretoise moyeu avant |
||||||
|
14 |
ETRIER AV |
||||||
|
14 |
Etrier de frein av |
||||||
|
15 |
KIT REVISION ETRIER AVAN |
||||||
|
16 |
AP8113456 - JEU PLAQUETTES FREIN AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/3/img/71313.jpg)
16 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" MOTI-GUZZI CALIFORNIA 2012>, AUDACE 2015>, ELDORADO 2015>, BELLAGIO (PAIR) -AP8113627- More informationQuantity required : 1 |
||||||
|
17 |
AP8113549 - PURGE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
17 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER APRILIA -AP8213108- More informationQuantity required : 1 |
||||||
|
18 |
DURITE DE FREIN AV |
||||||
|
18 |
AP8113484 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
18 |
DURITE DE FREIN AV |
||||||
|
18 |
DURITE FREIN AV |
||||||
|
19 |
BAGUE |
||||||
|
20 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
21 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
22 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
23 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
23 |
AP8113070 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/2/img/71922.jpg)
24 |
AP8152156 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/6/img/71396.jpg)
25 |
AP8120428 - GUIDE-CABLE SUP. More informationQuantity required : 1 |
