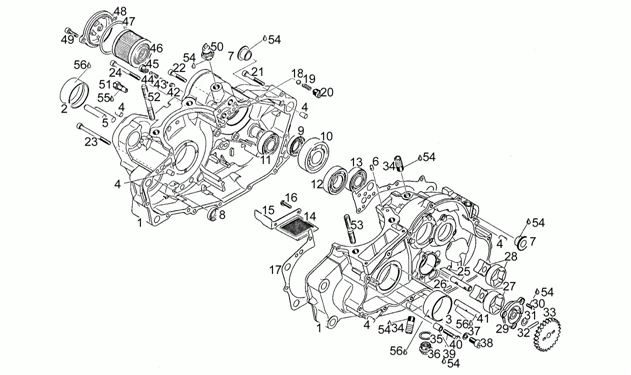

Vehicle Exploded View - APRILIA PEGASO 650 1992-1996

	P2R reference
	Maker reference	AP0295166

Carter - couple

	P2R reference	43547
	Maker reference	AP0233677

AP0233677 - BUSSOLA 48X52X22,8

	P2R reference	43548
	Maker reference	AP0233680

AP0233680 - DOUILLE

	P2R reference	44361
	Maker reference	AP0632010

AP0632010 - GOUPILLE

	P2R reference	43490
	Maker reference	AP0229301

AP0229302 - PIVOT

	P2R reference	43490
	Maker reference	AP0229302

AP0229302 - PIVOT

	P2R reference	44570
	Maker reference	AP0929650

AP0929650 - GOUPILLE

	P2R reference	43791
	Maker reference	AP0247320

AP0247320 - DOUILLE

	P2R reference	44273
	Maker reference	AP0430550

AP0430550 - JOINT SPI

	P2R reference	43504
	Maker reference	AP0230395

AP0230395 - JOINT SPI

	P2R reference	151256
	Maker reference	AP0932825

AP0932825 - ROULEMENT VILO. DR.

	P2R reference	43532
	Maker reference	AP0232501

AP0232501 - ROULEMENT

	P2R reference	43540
	Maker reference	AP0232764

AP0232764 - ROULEMENT

	P2R reference	44586
	Maker reference	AP0932815

AP0932815 - ROULEMENT

	P2R reference	43955
	Maker reference	AP0256321

AP0256321 - CREPINE D'HUILE

	P2R reference
	Maker reference	AP0256430

Plaquette

	P2R reference	44604
	Maker reference	AP0941925

AP0941925 - VIS TE SPECIALE

	P2R reference	43841
	Maker reference	AP0250910

AP0250910 - JOINT

	P2R reference
	Maker reference	AP0932830

Bille

	P2R reference	43664
	Maker reference	AP0239280

AP0239280 - RESSORT DE COMPRESSION

	P2R reference	43954
	Maker reference	AP0256170

AP0256170 - VIS FERMETURE VALVE

	P2R reference	43745
	Maker reference	AP0241822

AP0241822 - VIS

	P2R reference	43742
	Maker reference	AP0241811

AP0241811 - VIS

	P2R reference	43704
	Maker reference	AP0240531

AP0240531 - VIS

	P2R reference
	Maker reference	AP0241262

Vis

	P2R reference	43771
	Maker reference	AP0245330

AP0245330 - BAGUE SEEGER

	P2R reference	38269
	Maker reference	2R000229

2R000229 - GOUPILLE

	P2R reference	127118
	Maker reference	2R000272

2R000272 - ROTOR INTER.

	P2R reference	43957
	Maker reference	AP0256348

AP0256348 - ROTOR INTER. ET EXT.

	P2R reference	43338
	Maker reference	AP0210640

AP0210640 - COUVERCLE POMPE HUILE;

	P2R reference
	Maker reference	AP0940516

Vis

	P2R reference	44502
	Maker reference	AP0827590

AP0827590 - RACLEUR

	P2R reference	38263
	Maker reference	2R000080

2R000080 - GOUPILLE

	P2R reference
	Maker reference	AP0234560

Engrenage pompe huile

	P2R reference	43956
	Maker reference	AP0256330

AP0256330 - RACCORD

	P2R reference	44293
	Maker reference	AP0552280

OIL PUMP GASKET "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, SCARABEO, 650 PEGASO -AP0552280-

	P2R reference	44515
	Maker reference	AP0840277

AP0840277 - VIS MAGNETIQUE

	P2R reference	44622
	Maker reference	AP0950141

AP0950141 - BAGUE D'ETANCHEITE

	P2R reference	44285
	Maker reference	AP0440193

AP0440193 - VIS

	P2R reference	43795
	Maker reference	AP0247790

AP0247790 - ENTRETOISE

	P2R reference	44601
	Maker reference	AP0941500

AP0941500 - VIS

	P2R reference
	Maker reference	AP0237061

ASSE INGRANAGGIO FOLLE

	P2R reference	44035
	Maker reference	AP0260570

AP0260570 - SOUPAPE DE RETENUE HUILE

	P2R reference	163432
	Maker reference	AP0256150

AP0256150 - AXE SOUPAPE

	P2R reference	43682
	Maker reference	AP0239810

AP0239810 - RESSORT

	P2R reference	43954
	Maker reference	AP0256170

AP0256170 - VIS FERMETURE VALVE

	P2R reference	71092
	Maker reference	AP0256185

AP0256185 - FILTRE A HUILE

	P2R reference	43519
	Maker reference	AP0230920

AP0230920 - JOINT TORIQUE

	P2R reference	43336
	Maker reference	AP0210411

OIL FILTER COVER "PIAGGIO GENUINE PART" APRILIA 650 PEGASO 1992>2000 -AP0210411-

	P2R reference	44524
	Maker reference	AP0840880

AP0840880 - VIS

	P2R reference	67933
	Maker reference	1D001138

SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138

	P2R reference	43747
	Maker reference	AP0241854

AP0241854 - VIS CONTACT

	P2R reference	43706
	Maker reference	AP0240545

AP0240545 - VIS SANS T?TE

	P2R reference	43705
	Maker reference	AP0240541

AP0240541 - VIS SANS T?TE

	P2R reference	44557
	Maker reference	AP0899785

AP0899785 - LOCTITE VIOLET

	P2R reference	44556
	Maker reference	AP0899784

AP0899784 - LOCTITE ORANGE

	P2R reference	44257
	Maker reference	AP0297433

AP0297433 - MOLYKOTE
