Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

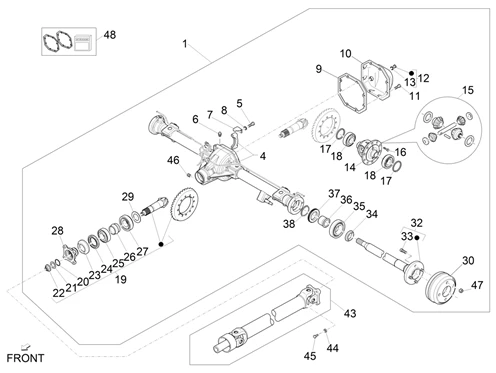

Moteur : 01.25 TRANSMISSION ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_01.25.png)
4 |
837178 - CORPS ESSIEU More informationQuantity required : 1 |
||||||
|
5 |
9004101607000 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/0/6/img/115506.jpg)
6 |
9004915043000 - RENIFLARD More informationQuantity required : 1 |
||||||
|
7 |
4131687Z01000 - PLAQUE More informationQuantity required : 2 |
||||||
|
8 |
837109 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/9/3/img/116193.jpg)
9 |
837161 - JOINT More informationQuantity required : 1 |
||||||
|
10 |
837163 - COUVERCLE More informationQuantity required : 1 |
||||||
|
11 |
9004101609000 - BOULON More informationQuantity required : 8 |
||||||
|
12 |
493434 - BOUCHON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/8/5/img/111685.jpg)
13 |
493435 - JOINT More informationQuantity required : 8 |
||||||
|
14 |
837179 - BOITE DIFF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/6/5/img/123765.jpg)
15 |
0441387Z01000 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
16 |
9004109212000 - BOULON More informationQuantity required : 12 |
||||||
|
17 |
9004564523000 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
9004564524000 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
9004564525000 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
9004564527000 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
17 |
9004564518000 - ENTRETOISE More informationQuantity required : 17 |
||||||
|
17 |
9004564526000 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/8/3/img/117783.jpg)
17 |
SPACER FOR DIFERENTIAL GEAR (5,4 MM) "PIAGGIO GENUINE PART" PORTER -9004564521000 More informationQuantity required : 2 |
||||||
|
17 |
9004564520000 - EPAISSEUR More informationQuantity required : 2 |
||||||
|
17 |
9004564519000 - ENTRETOISE More informationQuantity required : 17 |
||||||
|
17 |
9004564522000 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/6/5/img/121265.jpg)
18 |
BEARING FOR REAR WHEEL SHAFT "PIAGGIO GENUINE PART" PORTER - 9004366066000 More informationQuantity required : 2 |
||||||
|
19 |
BEVEL GEAR KIT "PIAGGIO GENUINE PART" PORTER - PETROL 2010> -837176- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/1/img/111941.jpg)
20 |
9004301252000 - BAGUE More informationQuantity required : 1 |
||||||
|
21 |
9004201724000 - ROULEAU More informationQuantity required : 1 |
||||||
|
22 |
9004178044000 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/9/4/img/114694.jpg)
23 |
4125287Z01000 - PARE-POUSSIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/4/7/img/116947.jpg)
24 |
GASKET FOR TRANSMISSION BEVEL GEAR "PIAGGIO GENUINE PART" PORTER -9004311330000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/2/3/img/120923.jpg)
25 |
BEVEL GEAR SHAFT BEARING "PIAGGIO GENUINE PART" PORTER -9004366065000 More informationQuantity required : 1 |
||||||
|
26 |
4123187Z01000 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/5/img/121345.jpg)
27 |
BEVEL GEAR SHAFT BEARING "PIAGGIO GENUINE PART" PORTER -9004366067000 More informationQuantity required : 1 |
||||||
|
28 |
837219 - FLANGE 146011 More informationQuantity required : 1 |
||||||
|
29 |
9004564516000 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/9/8/3/img/115983.jpg)
29 |
9004564515000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564510000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564509000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564511000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564513000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564512000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564508000 - JOINT More informationQuantity required : 1 |
||||||
|
29 |
9004564514000 - EPAISSEUR More informationQuantity required : 1 |
||||||
|
29 |
9004564517000 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/2/3/img/122223.jpg)
30 |
REAR BRAKE DRUM "PIAGGIO GENUINE PART" PORTER -4243187Z03000 More informationQuantity required : 2 |
||||||
|
32 |
837174 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/0/0/img/113300.jpg)
33 |
9004912054000 - BOULON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/1/7/img/116717.jpg)
34 |
4232987Z01000 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/4/7/img/120947.jpg)
35 |
BEARING FOR REAR WHEEL SHAFT "PIAGGIO GENUINE PART" PORTER -9004363243000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/1/3/img/120613.jpg)
36 |
837162 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/6/3/4/img/121634.jpg)
37 |
PHONIC WHEEL - SPEEDOMETER "PIAGGIO GENUINE PART" PORTER 2010> E4 -837171 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/9/4/img/116794.jpg)
38 |
GASKET FOR TRANSMISSION SHAFT "PIAGGIO GENUINE PART" PORTER E4 2010> -837220 More informationQuantity required : 2 |
||||||
|
38 |
GASKET FOR TRANSMISSION SHAFT "PIAGGIO GENUINE PART" PORTER E4 2010> -837220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/0/0/4/img/143004.jpg)
43 |
SHAFT ASSY-PROPELLER "PIAGGIO GENUINE PART" PORTER MULTITECH E4-E6 -CM0381035 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/1/img/110471.jpg)
44 |
9451201000000 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/2/4/img/111024.jpg)
45 |
264451 - BOULON More informationQuantity required : 4 |
||||||
|
46 |
9004341070000 - BOUCHON More informationQuantity required : 1 |
||||||
|
47 |
837221 - ECROU More informationQuantity required : 8 |
||||||
|
48 |
850667 - KIT EXAMEN AXE ARRIERE More informationQuantity required : 1 |
