Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

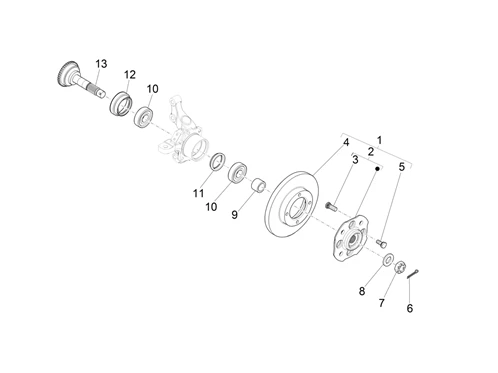

Suspensions - roues : 04.04 MOYEU DE LA ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_04.04.png)
1 |
D4351087Z02 - MOYEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/4/8/img/122548.jpg)
2 |
FRONT AXLE HUB "PIAGGIO GENUINE PART" PORTER 1993>, CARGO 2007> -4350287Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/3/img/158423.jpg)
3 |
9004912030 - BOULON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/8/8/img/122088.jpg)
4 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" PORTER -4351287Z02000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/1/6/img/114916.jpg)
5 |
9004119520000 - BOULON More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/5/6/img/110456.jpg)
6 |
D9004252016 - AXE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/2/3/img/113423.jpg)
7 |
D9004171053 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/9/3/img/112793.jpg)
8 |
9004201224000 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/7/9/img/116679.jpg)
9 |
SPACER- FOR FRONT WHEEL BEARING "PIAGGIO GENUINE PART" PORTER, CARGO -9004389068000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/6/6/4/img/158664.jpg)
10 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" PIAGGIO PORTER, CARGO -D90043632425 More informationQuantity required : 2 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/8/3/img/117283.jpg)
12 |
GASKET RING FOR FRONT WHEEL SHAFT "PIAGGIO GENUINE PART" PORTER -9004311201000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/9/6/3/img/142963.jpg)
13 |
FRONT IMPELLER SHAFT "PIAGGIO GENUINE PART" PORTER -B0008245 More informationQuantity required : 1 |
